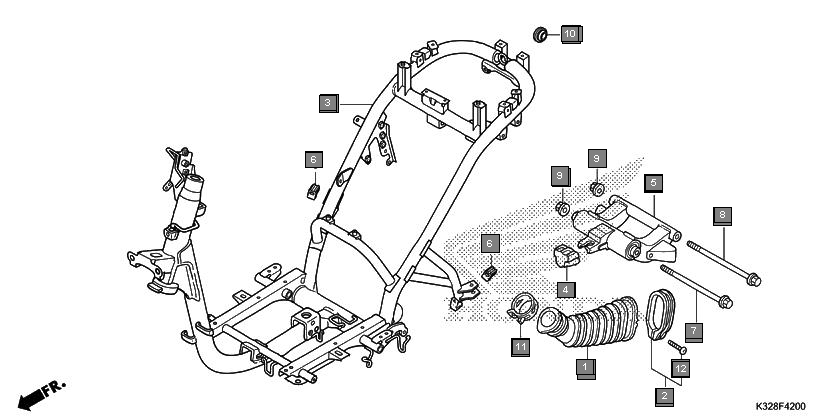

Scooters Activa i SCV110HK Frame Frame body
Ref.No. Part No. Description Oty
1 11345KWPG00 DUCT, L. COVER 1
2 11346KCW870 BAND, L. COVER DUCT 1
3 50100K32770 BODY COMP., FRAME 1
4 50352GW0730 RUBBER, LINK STOPPER 1
5 50355KVTG00 LINK SUB ASSY., ENGINE HANGER 1
6 83502KCC900 GROMMET, SIDE COVER 2
7 90105KJ9000 BOLT, FLANGE, 10X210 1
8 90106GCC000 BOLT, FLANGE, 10X238 1
9 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
10 90862KWPG00 PLUG, END 1
11 91405KPL900 CLAMP, TUBE(D29) 1
12 93500040250G SCREW, PAN, 4X25 1
