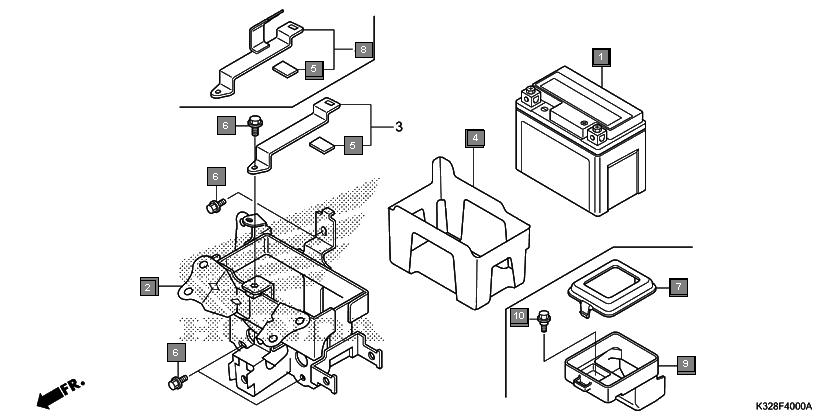

Scooters Activa i SCV110HK Frame Battery
Ref.No. Part No. Description Oty
1 31500KVT801 BATTERY ASSY.(ETZ4-BS)(EXIDE) 1
2 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
3 50330K32770 BOX COMP., BATTERY 1
4 50381K32F00 CASE, BATTERY 1
5 50386KWPD00 RUBBER A, BATTERY 1
6 957010601208 BOLT, FLANGE, 6X12 4
7 50325KZKF00 COVER, C.D.I. UNIT 1
8 50341K32F00 BAND COMP., BATTERY 1
9 50382K32F00 BOX, C.D.I. UNIT 1
10 90111KWP900 BOLT, INNER COVER 1
