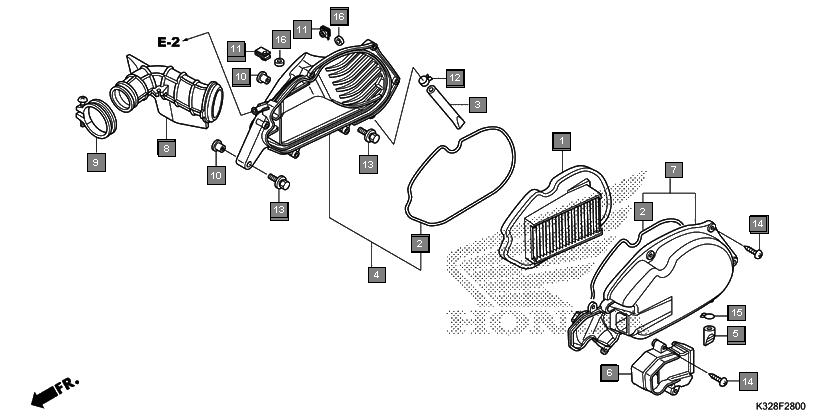

Scooters Activa i SCV110HK Frame Air cleaner
Ref.No. Part No. Description Oty
1 17210KVTD00 ELEMENT, AIR CLEANER 1
2 17212GEE000 SEAL, AIR CLEANER COVER 2
3 17216KVTG00 TUBE, DRAIN 1
4 17225K74N20 CASE SUB ASSY., AIR CLEANER 1
5 17234KCC941 TUBE, AIR CLEANER DRAIN 1
6 17234KVTG00 COVER, AIR CLEANER DUCT 1
7 17235KVTG00 COVER SUB ASSY., AIR CLEANER 1
8 17253KVTG00 TUBE, AIR CLEANER CONNECTING 1
9 17254K74N00 BAND, AIR CLEANER CONNECTING TUBE(40) 1
10 50731KV3770 COLLAR, PILLION STEP SETTING 2
11 90311MT3000 NUT, CLIP, 6MM 2
12 90602KPL900 CLAMP, TUBE(D12.0) 1
13 934040604007 BOLT-WASHER, 6X40 2
14 9390325480 SCREW, TAPPING, 5X20 8
15 90653KWPF00 CLIP, TUBE(B12.5) 1
16 17223KVX600 COLLAR, AIR CLEANER 2
