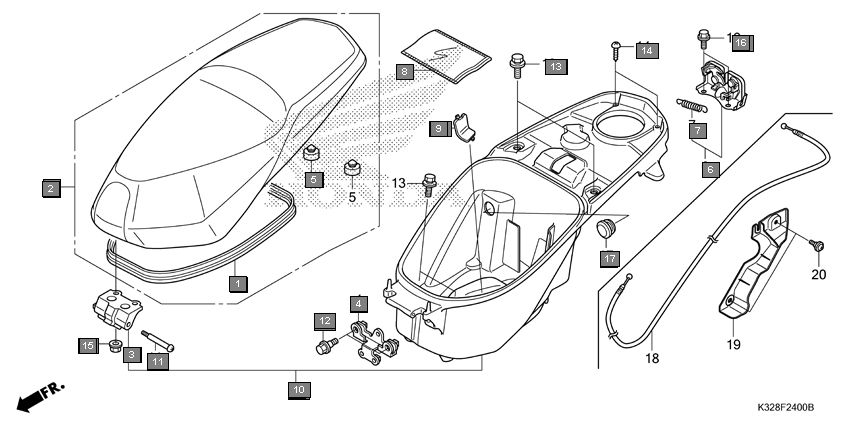

Scooters Activa i SCV110HK Frame Seat/luggage box
Ref.No. Part No. Description Oty
1 77115KZK900 RUBBER, SEAL 1
2 77200K32771ZA SEAT COMP., DOUBLE *TYPE1* 1
3 77201KWPG30 HINGE, SEAT 1
4 77203KWP900 STAY, HOOK LUGGAGE 1
5 77206KG8900 RUBBER, SEAT SETTING 2
6 77235K86D00 CATCH COMP., SEAT 1
7 77234K86D00 SPRING, SEAT LOCK 1
8 77251KPL900 BAG, SERVICE BOOK 1
9 81255KZK900 COVER, CARBURETOR MAINTENANCE 1
10 81260K32700 BOX ASSY., LUGGAGE 1
11 90105KTP900 PIN, HINGE 1
12 90112KRP900 BOLT, FLANGE, 6X18 2
13 934040601207 BOLT-WASHER, 6X12 4
14 9390334480 SCREW, TAPPING, 4X16 2
15 9405006000 NUT, FLANGE, 6MM 2
16 957010601208 BOLT, FLANGE, 6X12 2
17 90862KWPG00 PLUG, END 1
18 77240KWPH01 CABLE COMP., SEAT LOCK(HI-LEX) 1
19 83640K32770 COVER, SEAT LOCK CABLE 1
20 91509GE2760 SCREW, PAN, 5X11.5 2
