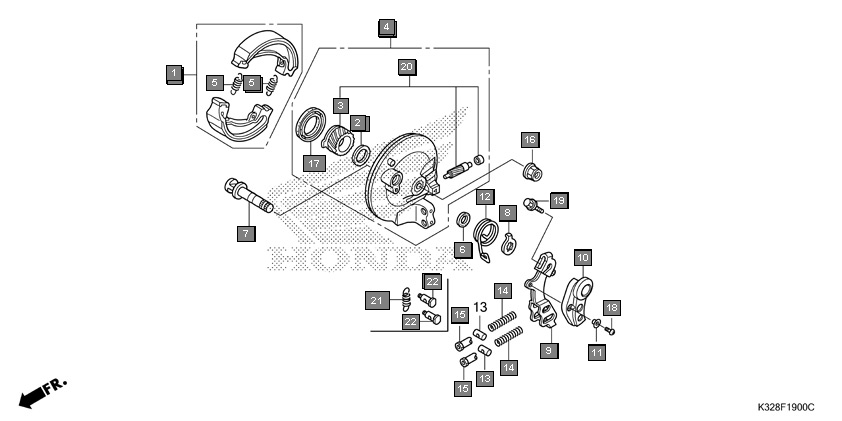

Scooters Activa i SCV110HK Frame Front brake panel
Ref.No. Part No. Description Oty
1 06430KWPD00 SHOE SET, BRAKE(ASK) 1
2 06430KWP900 SHOE SET, BRAKE(JB) 1
3 44809KPL900 WASHER, SPEEDOMETER GEAR 1
4 44811KPL900 GEAR, SPEEDOMETER 1
5 45010KWPG00 PANEL SUB COMP., FR. BRAKE 1
6 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
7 45134250000 DUST SEAL, BRAKE CAM 1
8 45141KWPD00 CAM, FR. BRAKE (RR.) 1
9 45145KPL900 INDICATOR, FR. BRAKE 1
10 45410KWP910 ARM COMP., FR. BRAKE 1
11 45415KWP910 COVER, BRAKE ARM 1
12 45416KWP910 COLLAR, BRAKE ARM COVER 1
13 45435KPL900 SPRING, BRAKE ARM RETURN 1
14 45456KWP910 SPRING, BRAKE CABLE END 2
15 45459KWP911 NUT, BRAKE ADJUSTING 2
16 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
17 91253KPL900 DUST SEAL, 41X60X7 1
18 93500050101G SCREW, PAN, 5X10 1
19 957010603500 BOLT, FLANGE, 6X35 1
20 44820KWP900 GEAR SET, SPEEDOMETER 1
21 45134KWPG30 SPRING, BRAKE ARM JOINT 1
22 45453KWPG30 JOINT, BRAKE ARM 2
