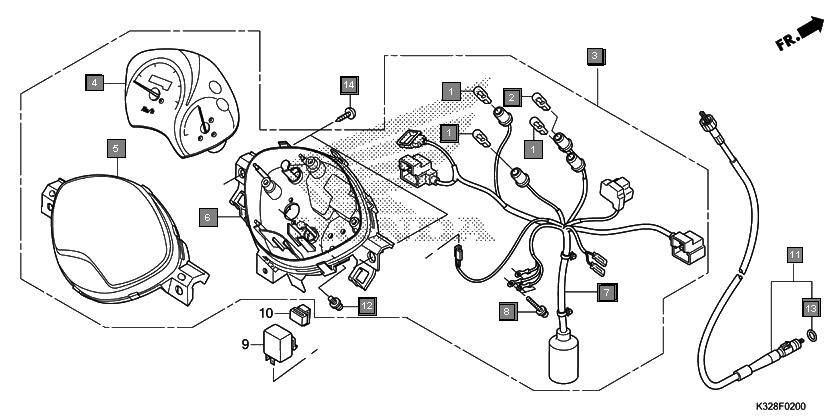

Scooters Activa i SCV110HK Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 3
2 34909KVE900 BULB, WEDGE BASE(T10)(12V 3W) 1
3 37200K32771 SPEEDOMETER ASSY.(KPH) 1
4 37210K32771 METER COMP., SPEED & FUEL 1
5 37211K32901 LENS 1
6 37220K32901 CASE COMP. 1
7 37224K32771 SOCKET COMP. 1
8 37305KE5008 SCREW-WASHER, 3X22 3
9 44830K32901 CABLE COMP., SPEEDOMETER 1
10 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
11 91352GAZ930 O-RING, 8.5X1.5 1
12 9390325380 SCREW, TAPPING, 5X16 3
