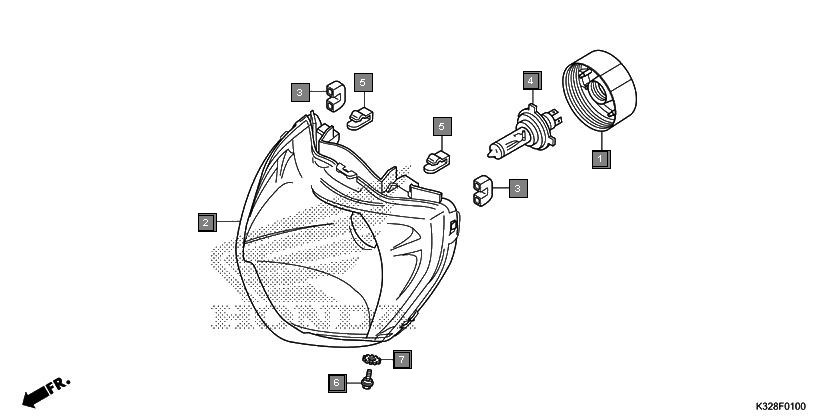

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33112K32901 | COVER, RUBBER | 1 |
2 | 33120K32901 | HEADLIGHT UNIT | 1 |
3 | 33706KWS901 | TUBE | 2 |
4 | 34901KVN971 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) | 1 |
5 | 34901KSP910 | BULB, HEADLIGHT(HS1)(12V 35/35W)(PHILIPS) | 1 |
6 | 53209GAH000 | CLIP, HEADLIGHT | 2 |
7 | 90103KVH900 | BOLT, ADJUSTER | 1 |
8 | 90307GW3980 | WASHER, LOCK, 6MM | 1 |
