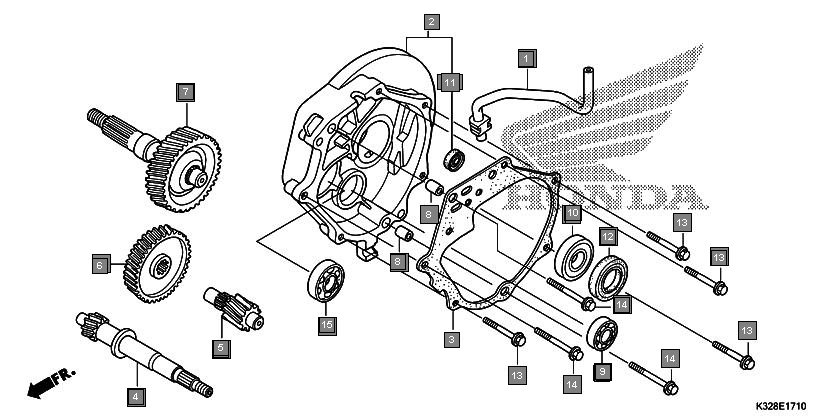

Scooters Activa i SCV110HK Engine Transmission
Ref.No. Part No. Description Oty
1 11220KWPH00 TUBE, MISSION BREATHER 1
2 21200KWPH00 CASE COMP., MISSION 1
3 21395KWP901 GASKET, TRANSMISSION CASE 1
4 23411KWPH10 DRIVESHAFT(19T) 1
5 23421KWPH10 COUNTERSHAFT(13T) 1
6 23422KWPH10 GEAR, COUNTER(51T) 1
7 23430KWPH10 GEAR COMP., FINAL(49T) 1
8 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
9 91006KWPG32 BEARING, RADIAL BALL, 6201 (FAG) 1
10 91006KWPG31 BEARING, RADIAL BALL, 6201 (NBC) 1
11 91008KWPD02 BEARING, RADIAL BALL, 6004UU(FAG) 1
12 91008KWPD03 BEARING, RADIAL BALL, 6004UU(NEI LTD) 1
13 91204KWPD01 OIL SEAL, 14X20X3.2(FENNER) 1
14 91203KPL901 OIL SEAL, 14X20X3.2 1
15 91225KWPD01 OIL SEAL, 27X42X7 1
16 957010603000 BOLT, FLANGE, 6X30 4
17 957010604000 BOLT, FLANGE, 6X40 3
18 961006301000 BEARING, RADIAL BALL, 6301 1
