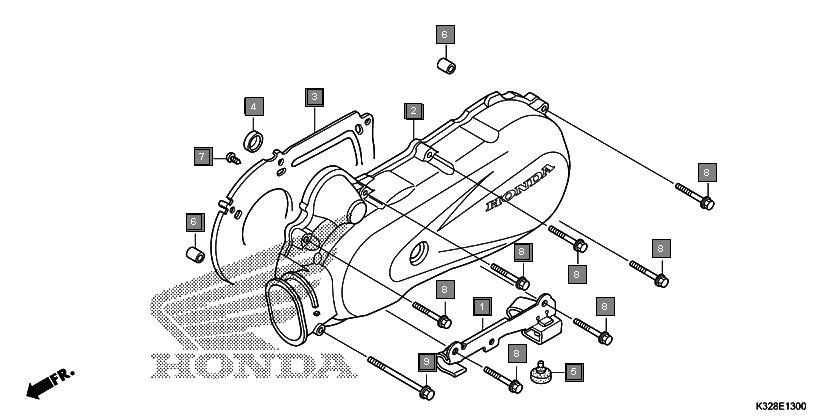

Scooters Activa i SCV110HK Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11230KZK900 CLAMPER COMP., RR. BRAKE CABLE 1
2 11341K32700 COVER, L. SIDE 1
3 11342K86D00 PLATE, L. COVER 1
4 11344GW3980 RUBBER, STARTER PINION HOLDER 1
5 50501KPL900 STOPPER, RUBBER 1
6 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
7 9390334120 SCREW, TAPPING, 4X8 5
8 960010603500 BOLT, FLANGE, 6X35 7
9 960010607500 BOLT, FLANGE, 6X75 1
