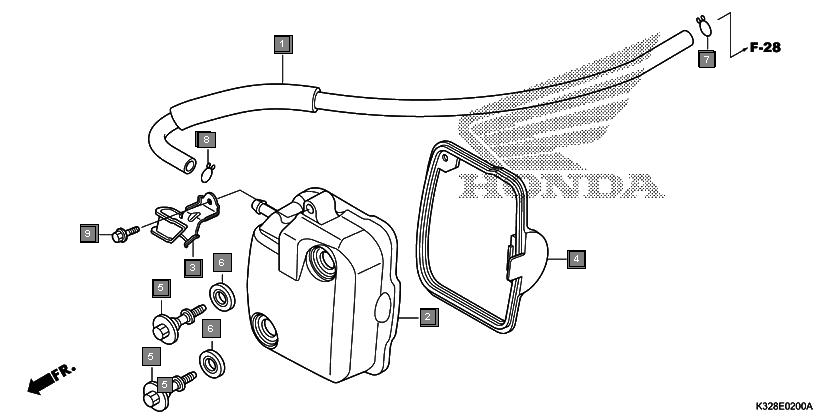

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 11211KWP900 | TUBE, BREATHER | 1 |
2 | 12310KWPH00 | COVER COMP., HEAD | 1 |
3 | 12315KZN900 | CLAMPER, THROTTLE CABLE | 1 |
4 | 12391KWP900 | GASKET, CYLINDER HEAD COVER | 1 |
5 | 90017KPL900 | BOLT, HEAD COVER | 2 |
6 | 90543MV9670 | RUBBER, MOUNTING | 2 |
7 | 90653KWPF00 | CLIP, TUBE(B12.5) | 1 |
8 | 90601KWPF00 | CLIP, TUBE(B12) | 1 |
9 | 960010601400 | BOLT, FLANGE, 6X14 | 1 |
