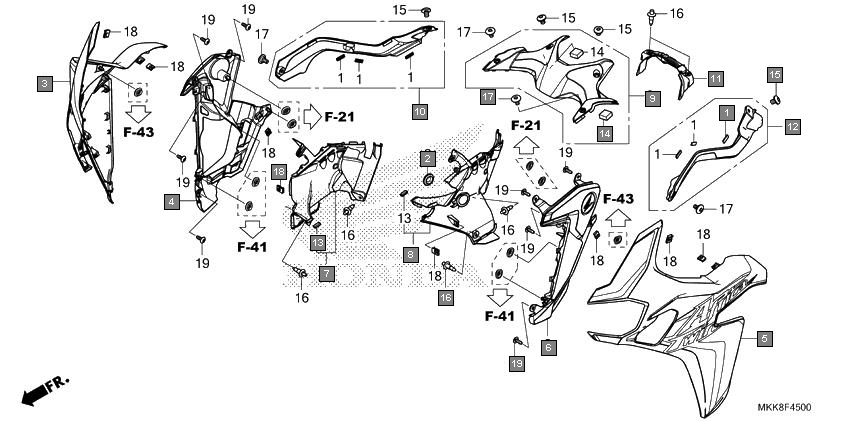

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17541MJPG50 | FASTENER, DUAL LOCK(8X25) | 6 |
| 2 | 39119MJG640 | GROMMET, AUDIO BOX | 1 |
| 3 | 64310MKKDL0ZA | COWL SET, R. MIDDLE(WL) *TYPE1* | 1 |
| 4 | 64320MJPG51 | COVER SET, R. FR. SIDE(WL) | 1 |
| 5 | 64360MKKDL0ZA | COWL SET, L. MIDDLE(WL) *TYPE1* | 1 |
| 6 | 64370MJPG51 | COVER SET, L. FR. SIDE(WL) | 1 |
| 7 | 64521MJPG50 | COVER, R. INNER | 1 |
| 8 | 64571MJPG50 | COVER, L. INNER | 1 |
| 9 | 64611MJPG50 | COVER, FR. TANK | 1 |
| 10 | 64711MJPG50 | COVER, R. TANK SIDE | 1 |
| 11 | 64712MJPG50 | COVER, RR. TANK | 1 |
| 12 | 64761MJPG50 | COVER, L. TANK SIDE | 1 |
| 13 | 77212MFJD00 | PROTECTOR, RUBBER | 2 |
| 14 | 83605MY5G30 | RUBBER A, SIDE COVER | 2 |
| 15 | 90106MKKD00 | BOLT, SPECIAL, 6X8 | 4 |
| 16 | 90116SP0003 | CLIP, BUMPER SEAL | 6 |
| 17 | 90122MJKN20 | SCREW, SPECIAL, 5X11 | 4 |
| 18 | 90677KAN961 | NUT, CLIP, 5MM | 8 |
| 19 | 9390324380 | SCREW, TAPPING, 4X12 | 8 |
