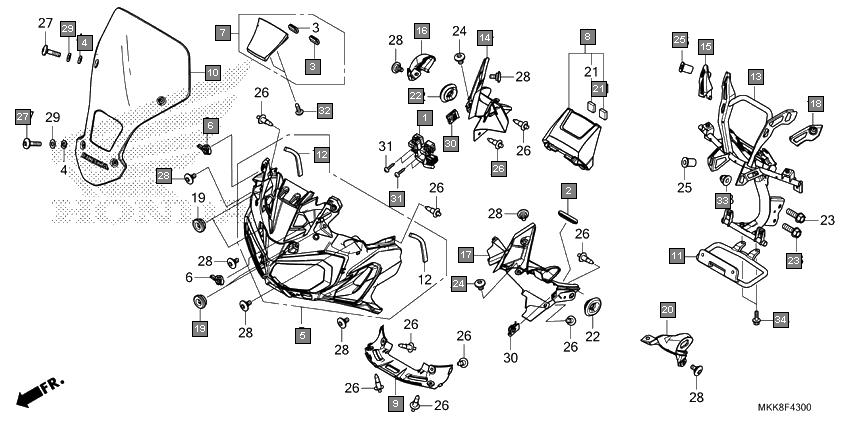

Motorcycles Africa Twin CRF1000DJ Frame Front cover
Ref.No. Part No. Description Oty
1 35240MJPG81 SWITCH ASSY., G MODE & RR. ABS CANCEL 1
2 39119MJG640 GROMMET, AUDIO BOX 1
3 64121MEJ000 RUBBER, PROTECTOR 2
4 64205166610 WASHER, SCREEN SETTING 4
5 64211MKKD00 COVER ASSY., FR. 1
6 64213MJNA01 CLIP, TWIST 2
7 64215MKKD00 COVER, FR. UPPER 1
8 64218MKKD00 COVER, METER 1
9 64221MJPG50 SPOILER, FR. 1
10 64250MJPG50ZA WINDSCREEN SET(WL) *TYPE1* 1
11 64305MJPMF0 STAY, FR. NUMBER PLATE 1
12 64312MJPG50 SEAL B, MIDDLE COWL 2
13 64501MKKD00 STAY COMP., FR. COWL 1
14 64531MKKD50 COVER, R. INNER PANEL 1
15 64532MJPG50 COVER, R. COWL STAY 1
16 64541MKKD00 COVER, R. FR. WINKER 1
17 64581MKKD00 COVER, L. INNER PANEL 1
18 64582MJPG50 COVER, L. COWL STAY 1
19 64586MBWD20 RUBBER, AIR DUCT COVER SETTING 4
20 64591MKKD00 COVER, L. FR. WINKER 1
21 67113MCT940 RUBBER, GARNISH 2
22 83551GE2000 GROMMET, AIR CLEANER CASE 2
23 90036GHB680 BOLT, FLANGE, 8X25 2
24 90106MKKD00 BOLT, SPECIAL, 6X8 2
25 90111KW3003 NUT, COWL SETTING, 5MM 4
26 90116SP0003 CLIP, BUMPER SEAL 10
27 90118MJPG50 SCREW, PAN, 5X20(SUS) 4
28 90122MJKN20 SCREW, SPECIAL, 5X11 8
29 90504964000 WASHER, THRUST, 5MM 4
30 90677KAN961 NUT, CLIP, 5MM 2
31 9390122320 SCREW, TAPPING, 3X12 4
32 9390324280 SCREW, TAPPING, 4X10 2
33 9405008070 NUT, FLANGE, 8MM 1
34 957010601400 BOLT, FLANGE, 6X14 2
