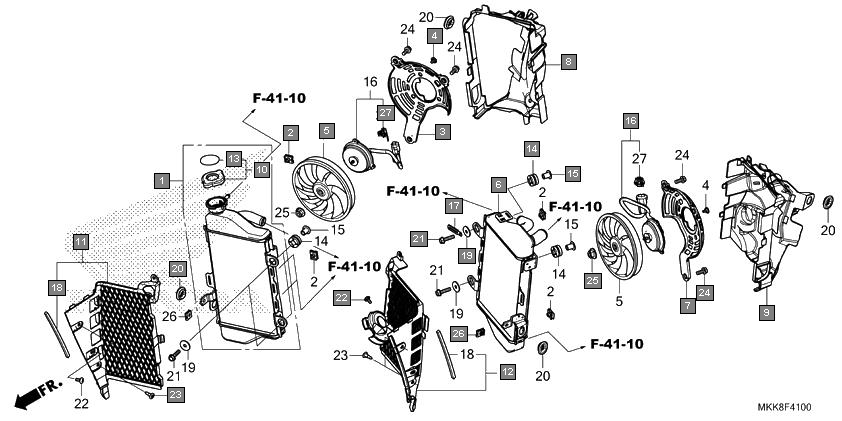

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 19010MJPA61 | RADIATOR COMP., R. | 1 |
| 2 | 19014KEA003 | NUT, SETTING(6MM) | 6 |
| 3 | 19015MJPG51 | SHROUD COMP., R. FAN | 1 |
| 4 | 19016KEA003 | SCREW, PAN, 4X8.5 | 6 |
| 5 | 19020MGSD31 | FAN COMP., COOLING(T.RAD) | 2 |
| 6 | 19020MJPG51 | RADIATOR COMP., L. | 1 |
| 7 | 19025MJPG51 | SHROUD COMP., L. FAN | 1 |
| 8 | 19035MKKD20 | SHROUD, R. RADIATOR | 1 |
| 9 | 19036MJPG50 | SHROUD, L. RADIATOR | 1 |
| 10 | 19037GEE710 | CAP COMP., RADIATOR | 1 |
| 11 | 19040MJPG50 | GRILLE ASSY., R. RADIATOR | 1 |
| 12 | 19045MJPG50 | GRILLE ASSY., L. RADIATOR | 1 |
| 13 | 19046PAAA00 | LABEL, RADIATOR CAP | 1 |
| 14 | 19051KA3830 | RUBBER, RADIATOR MOUNTING | 4 |
| 15 | 19052MFFD00 | COLLAR, RADIATOR MOUNTING | 4 |
| 16 | 19080MJPG51 | MOTOR ASSY., FAN | 2 |
| 17 | 32925958000 | CLIP, PULSER CORD | 1 |
| 18 | 64212MJPG50 | SEAL A, MIDDLE COWL | 2 |
| 19 | 77302124000 | WASHER, SEAT MOUNTING | 4 |
| 20 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 4 |
| 21 | 90031GHB680 | BOLT, FLANGE, 6X25 | 4 |
| 22 | 90115KW7900 | SCREW, VISOR SPECIAL SETTING | 2 |
| 23 | 90116SP0003 | CLIP, BUMPER SEAL | 4 |
| 24 | 90120KCR003 | BOLT-WASHER, 6X16 | 6 |
| 25 | 90315MFL003 | NUT, FLANGE, 3MM | 2 |
| 26 | 90320GC3000 | NUT, SPRING, 5MM | 2 |
| 27 | 91565SEL003 | CLIP, COUPLER(BLACK) | 2 |
