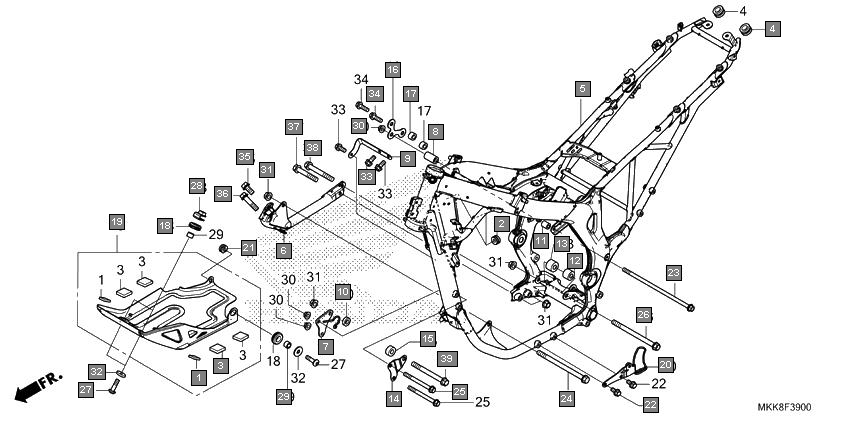

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17225MAH610 | RUBBER B, CUSHION | 2 |
| 2 | 17245107010 | RUBBER, AIR CLEANER CASE MOUNTING | 2 |
| 3 | 17515KFB840 | RUBBER, TANK GUARD | 4 |
| 4 | 17622GB7900 | RUBBER, CUSHION | 2 |
| 5 | 50100MKKD00ZA | BODY COMP., FRAME *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 6 | 50170MJPG50ZA | PIPE COMP., R. LOWER *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 7 | 50351MKKD00 | PLATE, R. FR. ENGINE HANGER | 1 |
| 8 | 50352MJPG50 | COLLAR C, R. ENGINE HANGER | 1 |
| 9 | 50353MJPG50 | PLATE, FR. HEAD ENGINE HANGER | 1 |
| 10 | 50354MJPG50 | COLLAR A, ENGINE HANGER | 1 |
| 11 | 50355MJPG50 | COLLAR B, ENGINE HANGER | 1 |
| 12 | 50356MJPG50 | COLLAR D, ENGINE HANGER | 1 |
| 13 | 50357MJPG50 | COLLAR F, ENGINE HANGER | 1 |
| 14 | 50358MKKD00 | PLATE, L. FR. ENGINE HANGER | 1 |
| 15 | 50359MJPG50 | COLLAR A, L. ENGINE HANGER | 1 |
| 16 | 50361MKKD00 | PLATE, R. RR. ENGINE HANGER UPPER | 1 |
| 17 | 50362MJPG50 | COLLAR E, ENGINE HANGER | 2 |
| 18 | 52491MCA000 | GROMMET, MOTOR MOUNTING | 3 |
| 19 | 64440MJPG60 | PLATE COMP., SKID | 1 |
| 20 | 64450MJPG50 | BRACKET, SKID PLATE | 1 |
| 21 | 80101283000 | RUBBER, RR. FENDER CUSHION | 1 |
| 22 | 90036GHB640 | BOLT, FLANGE, 8X16 | 2 |
| 23 | 90102MJPG50 | BOLT, FLANGE, 8X217 | 1 |
| 24 | 90103MY1000 | BOLT, FLANGE, 10X153 | 1 |
| 25 | 90114MKKD00 | BOLT, FLANGE, 8X90 | 2 |
| 26 | 90116KW3000 | BOLT, FLANGE, 10X138 | 1 |
| 27 | 90128KL4000 | BOLT, SPROCKET FIXING | 3 |
| 28 | 90321MJPG60 | NUT, CLIP, 8MM | 2 |
| 29 | 90512MJPG60 | COLLAR, 8.5X14X9 | 3 |
| 30 | 9405008080 | NUT, FLANGE, 8MM | 3 |
| 31 | 9405010080 | NUT, FLANGE, 10MM | 5 |
| 32 | 9410108000 | WASHER, PLAIN, 8MM | 3 |
| 33 | 963000801808 | BOLT, FLANGE, 8X18 | 3 |
| 34 | 963000802508 | BOLT, FLANGE, 8X25 | 2 |
| 35 | 963001002008 | BOLT, FLANGE, 10X20 | 1 |
| 36 | 963001004008 | BOLT, FLANGE, 10X40 | 1 |
| 37 | 963001006008 | BOLT, FLANGE, 10X60 | 1 |
| 38 | 963001007508 | BOLT, FLANGE, 10X75 | 1 |
| 39 | 964001010008 | BOLT, FLANGE, 10X100 | 1 |
