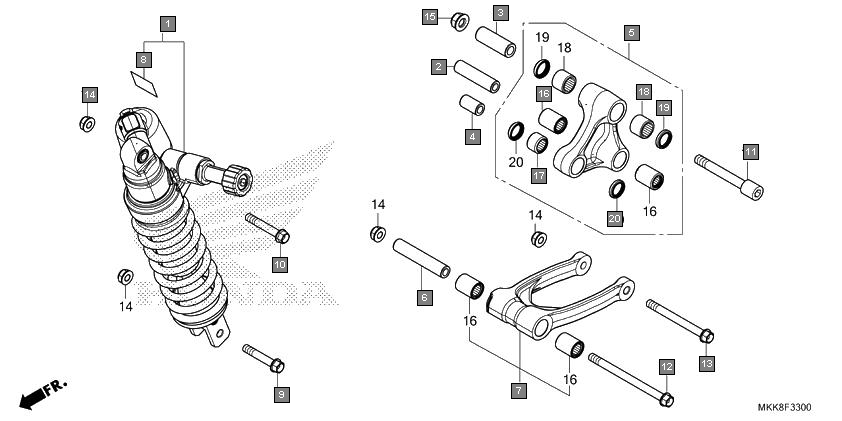

Motorcycles Africa Twin CRF1000DJ Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400MKKA01 CUSHION ASSY., RR.(SHOWA) 1
2 52462MJPG50 COLLAR B, CUSHION ARM 1
3 52463MJPG50 COLLAR C, CUSHION ARM 1
4 52464MJPG50 COLLAR D, CUSHION ARM 1
5 52465MKKD00 ARM SUB ASSY., CUSHION 1
6 52472MJPG50 COLLAR A, CUSHION CONNECTING ROD 1
7 52475MJPG50 ROD SUB ASSY., CUSHION CONNECTING 1
8 87516MBL610 LABEL, RR. DAMPER 1
9 90126MJPG50 BOLT, FLANGE, 10X57 1
10 90127MJPG50 BOLT, FLANGE, 10X62 1
11 90128MJPG50 BOLT, SOCKET, 12X91 1
12 90129MJPG50 BOLT, FLANGE, 10X139 1
13 90130MJPG50 BOLT, FLANGE, 10X106 1
14 90304MCSG01 NUT, U, FLANGE, 10MM 4
15 90306KTZD01 NUT, U, FLANGE, 12MM 1
16 91052MGSD31 BEARING, NEEDLE, 17X24X30 4
17 91071K64N01 BEARING, NEEDLE, 17X24X17 (SCHAEFFLER) 1
18 91071KSP901 BEARING, NEEDLE, 20X26X20 2
19 91254KS6003 DUST SEAL, 20X26X4.5(ARAI) 2
20 91262KV3831 DUST SEAL, 17X24X5(ARAI) 2
