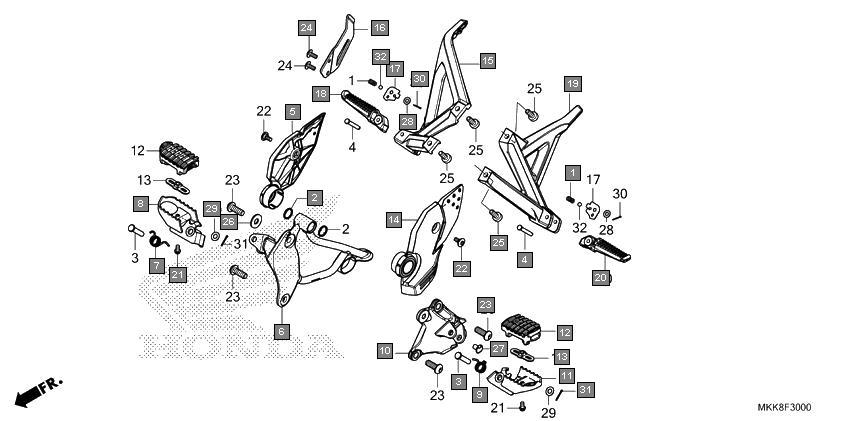

Motorcycles Africa Twin CRF1000DJ Frame Step
Ref.No. Part No. Description Oty
1 28333300000 SPRING, KICK STARTER STOPPER 2
2 46525KK0003 DUST SEAL, 17X20X2.5 2
3 50603KA3710 PIN, STEP JOINT 2
4 50603MFJD00 PIN, STEP JOINT 2
5 50607MJPG50 GUARD, R. HEEL 1
6 50615MKKD00ZB BRACKET COMP., R. STEP *NHA86M* MAT BALLISTIC BLACK METALLIC 1
7 50617KZ4J40 SPRING, R. STEP RETURN 1
8 50617MKKD00 STEP COMP., R. 1
9 50618KZ4J40 SPRING, L. STEP RETURN 1
10 50625MKKD00ZB BRACKET COMP., L. STEP *NHA86M* MAT BALLISTIC BLACK METALLIC 1
11 50627MKKD00 STEP COMP., L. 1
12 50661MKKD00 RUBBER, MAIN STEP 2
13 50662MKKD00 PLATE, STEP RUBBER SETTING 2
14 50707MJPG50 GUARD, L. HEEL 1
15 50715MKKD00ZB HOLDER, R. PILLION STEP *NHA86M* MAT BALLISTIC BLACK METALLIC 1
16 50716MJPG50 GUARD, PILLION HEEL 1
17 50718KT7761 PLATE, PILLION STEP CLICK 2
18 50720KT7761 BAR, R. PILLION STEP 1
19 50725MKKD00ZB HOLDER, L. PILLION STEP *NHA86M* MAT BALLISTIC BLACK METALLIC 1
20 50730KT7761 BAR, L. PILLION STEP 1
21 90102MW3600 BOLT, FLANGE, 6X10 2
22 90114MGED00 BOLT, SPECIAL, 6X15 2
23 90118MJNA00 BOLT, SOCKET, 10X28 4
24 90118MR1000 SCREW, PAN, 6X14 2
25 90157ME9000 BOLT, SOCKET, 8X22 4
26 90551178000 WASHER, SPECIAL, 10MM 1
27 90656MGH641 CLIP, BRUSH 1
28 9410106000 WASHER, PLAIN, 6MM 2
29 9410210000 WASHER, PLAIN, 10MM 2
30 9420116120 PIN, SPLIT, 1.6X12 2
31 9420120180 PIN, SPLIT, 2.0X18 2
32 9621108000 BALL, STEEL, #8(1/4) 2
