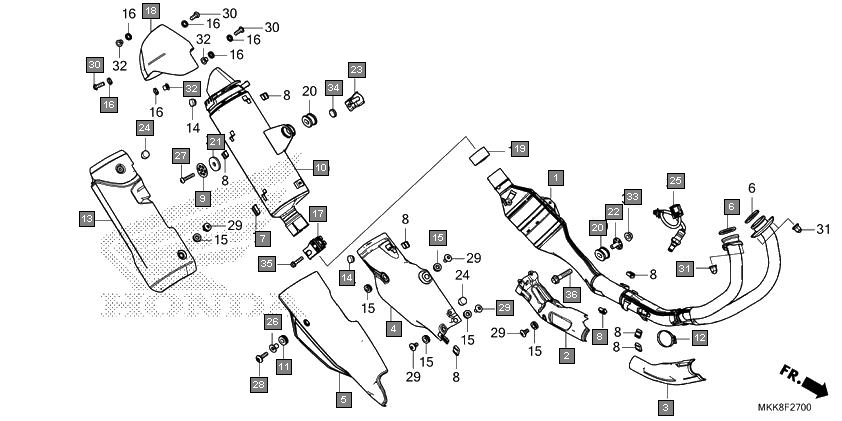

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18150MKKD00 | PIPE COMP., EX. | 1 |
2 | 18180MKKD00 | COVER COMP. A, EX. PIPE | 1 |
3 | 18185MKKD00 | COVER COMP. B, EX. PIPE | 1 |
4 | 18190MKKD00 | COVER COMP. C, EX. PIPE | 1 |
5 | 18240MKKD00 | COVER, EX. PIPE OUTER | 1 |
6 | 18291MM8880 | GASKET, EX. PIPE | 2 |
7 | 18293MJPG50 | RUBBER, PROTECTOR PACKING | 1 |
8 | 18293MN0000 | RUBBER, PROTECTOR | 8 |
9 | 18309MJPG50 | WASHER, 8.5X43 | 1 |
10 | 18310MKKH10 | MUFFLER COMP., EX. | 1 |
11 | 18316KFT620 | RUBBER, PROTECTOR | 1 |
12 | 18329MENA30 | BAND, EXHAUST PROTECTOR | 1 |
13 | 18340MKKD00 | COVER COMP., MUFFLER | 1 |
14 | 18345KTK000 | RUBBER, MUFFLER PROTECTOR | 2 |
15 | 18345MBT610 | RUBBER, PROTECTOR MOUNTING | 6 |
16 | 18365MEED00 | WASHER, RUBBER, 8.5X13X2.5 | 6 |
17 | 18371MJPG50 | BAND, MUFFLER | 1 |
18 | 18380MKKD00 | COVER, TAIL CAP | 1 |
19 | 18391ML0003 | PACKING, MUFFLER | 1 |
20 | 18421MJPG50 | RUBBER, MUFFLER MOUNTING | 2 |
21 | 18422MJPG50 | WASHER, RUBBER | 1 |
22 | 18423MGCN20 | COLLAR, EX. PIPE MOUNTING | 1 |
23 | 18423MJPG50 | COLLAR, MUFFLER MOUNTING | 1 |
24 | 18443MCWD60 | RUBBER, PROTECTOR | 2 |
25 | 36531MKKD01 | SENSOR, OXYGEN | 1 |
26 | 83505KGB610 | COLLAR, COVER MOUNTING | 1 |
27 | 90109MBT611 | BOLT, SOCKET, 8X45 | 1 |
28 | 90112MBB000 | BOLT, SPECIAL, 6X22 | 1 |
29 | 90113GFPB00 | SCREW, PAN, 6X12 | 5 |
30 | 90155MGE000 | BOLT, SPECIAL, 6X18 | 3 |
31 | 90304ME1670 | NUT, CAP, 8MM | 4 |
32 | 90501GN5830 | COLLAR, 8.5X7 | 3 |
33 | 9405008040 | NUT, FLANGE, 8MM | 1 |
34 | 9501163000 | RUBBER C, STAND STOPPER | 1 |
35 | 964000803504 | BOLT, FLANGE, 8X35 | 2 |
36 | 964000804004 | BOLT, FLANGE, 8X40 | 1 |
