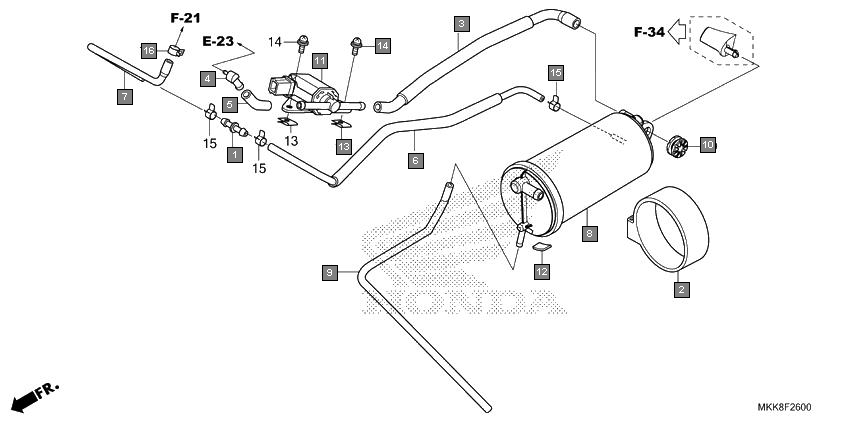

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16958GJ6000 | JOINT, FUEL TUBE | 1 |
2 | 17411MGZA00 | RUBBER, CANISTER MOUNT | 1 |
3 | 17414MJPA60 | TUBE(PCSV-CANISTER) | 1 |
4 | 17415KZZ900 | JOINT, TUBE | 1 |
5 | 17415MJPA60 | TUBE, PURGE CONTROL SOLENOID JOINT | 1 |
6 | 17418MKKD00 | TUBE, CANISTER | 1 |
7 | 17419MJPDA0 | TUBE, FUEL TANK JOINT | 1 |
8 | 17421MJPA60 | CANISTER COMP. | 1 |
9 | 17423MJPA60 | TUBE, CANISTER DRAIN | 1 |
10 | 33115KVK900 | RUBBER, HEADLIGHT | 1 |
11 | 36162KZL931 | VALVE, PURGE CONTROL SOLENOID | 1 |
12 | 80102MJSJ70 | RUBBER, RR. FENDER | 1 |
13 | 90677KAN961 | NUT, CLIP, 5MM | 2 |
14 | 938920501008 | SCREW-WASHER, 5X10 | 2 |
15 | 950024080008 | CLAMP, TUBE(D8) | 3 |
16 | 950024100008 | CLAMP, TUBE(D10) | 1 |
