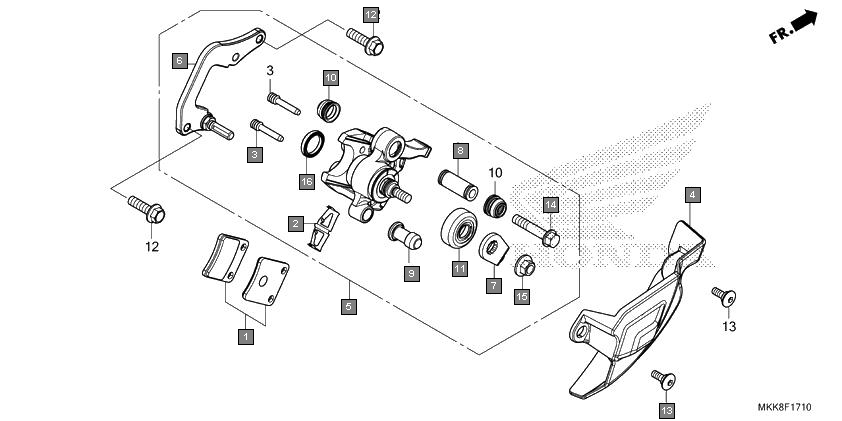

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06436MCT016 | PAD SET, PARKING BRAKE | 1 |
2 | 43208MCT006 | SPRING, PAD | 1 |
3 | 43215MCT006 | PIN, HANGER | 2 |
4 | 43230MJPG80 | COVER, PARKING BRAKE CALIPER | 1 |
5 | 43250MJPG81 | CALIPER SUB ASSY., RR. | 1 |
6 | 43290MJPG81 | BRACKET SUB ASSY., PARKING BRAKE | 1 |
7 | 43362MGSD71 | ARM | 1 |
8 | 45111MCT006 | SLEEVE | 1 |
9 | 45132166016 | BOOT, PIN BUSH(NISSIN) | 1 |
10 | 45133166016 | BOOT, PIN | 2 |
11 | 46184611000 | DUST SEAL, MASTER CYLINDER | 1 |
12 | 90101MGSD70 | BOLT, FLANGE, 8X28 | 2 |
13 | 90103K53D00 | BOLT, SOCKET, 6X18 | 2 |
14 | 90180MGSD71 | BOLT, FLANGE, 8X42 | 1 |
15 | 90313HE0006 | NUT-WASHER, 8MM | 1 |
16 | 91208PF5005 | DUST SEAL, 20X25X4(NOK) | 1 |
