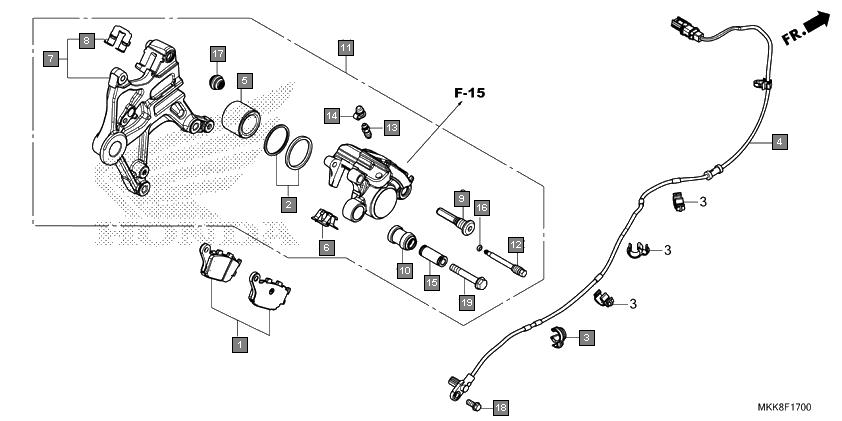

Motorcycles Africa Twin CRF1000DJ Frame Rear brake caliper
Ref.No. Part No. Description Oty
1 06435MEJ026 PAD SET, RR. 1
2 06451443405 SEAL SET, PISTON 1
3 17368KV7671 CLAMP, PIPE 4
4 38510MJPG61 SENSOR, RR. WHEEL SPEED 1
5 43107KT7761 PISTON 1
6 43108MBB006 SPRING, PAD 1
7 43110MJPG81 BRACKET COMP., RR. 1
8 43112MV9016 RETAINER 1
9 43131KW3006 BOLT, PIN 1
10 43132KT7761 BOOT, SLEEVE 1
11 43150MJPG81 CALIPER SUB ASSY., RR.(NISSIN) 1
12 43215KZ4J41 PIN, HANGER 1
13 43352568003 SCREW, BLEEDER(NISSIN) 1
14 43353461771 CAP, BLEEDER 1
15 45111MA3006 SLEEVE 1
16 45111MAJG41 RING, STOPPER 1
17 45133MA3006 BOOT B 1
18 90117MJPG60 BOLT, FLANGE, 6X14 1
19 90180MN8006 BOLT, FLANGE, 8X49 1
