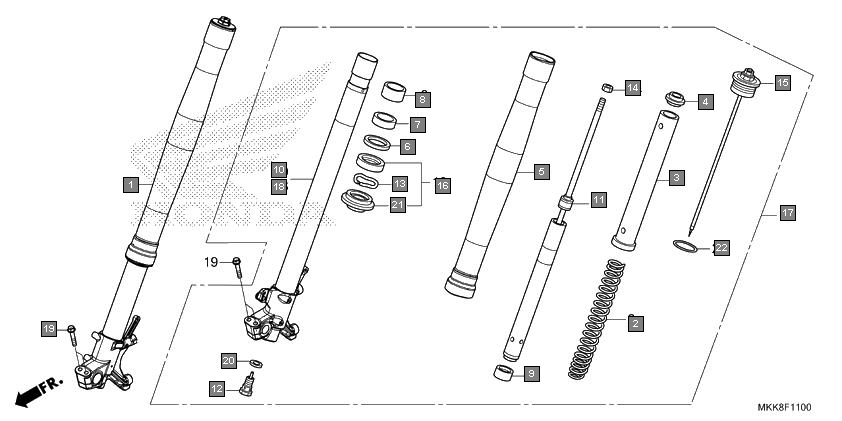

Motorcycles Africa Twin CRF1000DJ Frame Front fork
Ref.No. Part No. Description Oty
1 51400MKKD51 FORK ASSY., R. FR.(SHOWA) 1
2 51401MJPG51 SPRING, FR. FORK 2
3 51404MJPG51 COLLAR COMP., SPRING 2
4 51406MW4003 STOPPER, SPRING SEAT 2
5 51410MKKD01 TUBE, OUTER(SHOWA) 2
6 51412KZ3003 RING, BACK UP 2
7 51414MFR671 BUSH, GUIDE 2
8 51415MFR671 BUSH, SLIDER 2
9 51421KAE871 PLATE, CENTERING(SHOWA) 2
10 51425MJPG51 PIPE SUB COMP., R. SLIDE 1
11 51430MJPG51 DAMPER COMP., FR. 2
12 51441MJPG51 BOLT COMP., CENTER 2
13 51447KZ3003 RING, OIL SEAL STOPPER 2
14 51451MAJG41 NUT, HEX., 10MM 2
15 51454MKKD01 BOLT COMP., FR. FORK(SHOWA) 2
16 51490MJPG51 SEAL SET, FR. FORK 2
17 51500MKKD51 FORK ASSY., L. FR.(SHOWA) 1
18 51525MJPG61 PIPE SUB COMP., L. SLIDE 1
19 90109MR7000 BOLT, FLANGE, 8X45 4
20 90544KS7003 WASHER, SPECIAL 2
21 91254KZ3003 SEAL, DUST 2
22 91356KZ3003 O-RING, 44.7X2.4 2
