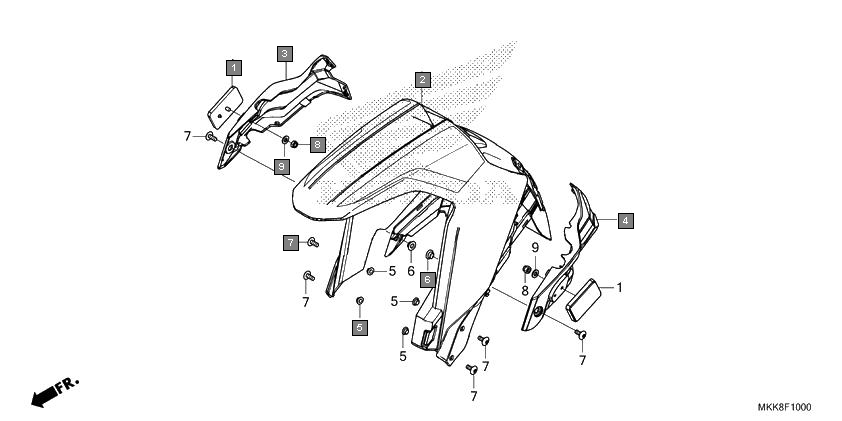

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33741MCWD01 | REFLECTOR, FR. REFLEX | 2 |
2 | 61000MKKDL1ZA | FENDER SET, FR.(WL) *TYPE1* | 1 |
3 | 61101MJPG50 | COVER, R. FR. FENDER | 1 |
4 | 61102MJPG50 | COVER, L. FR. FENDER | 1 |
5 | 61105MJPG50 | COLLAR, FR. FENDER | 4 |
6 | 80118MFJD00 | COLLAR, FENDER | 2 |
7 | 90118MR1000 | SCREW, PAN, 6X14 | 6 |
8 | 90302435761 | NUT, HEX., 5MM | 2 |
9 | 90401ZVA000 | WASHER, 6MM | 2 |
