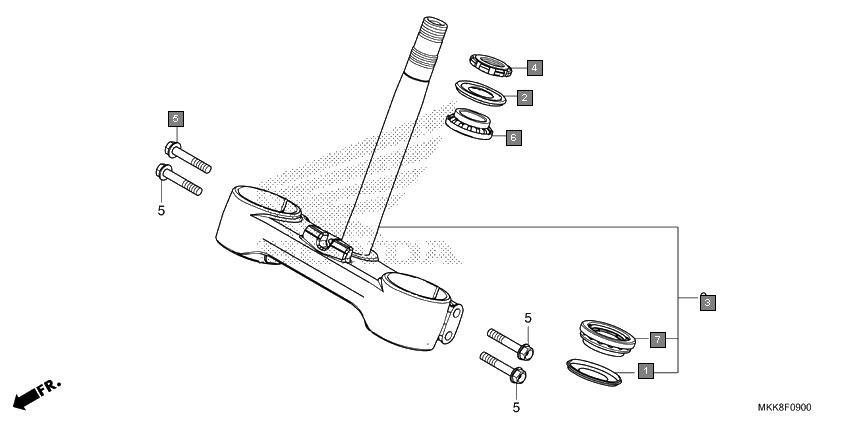

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 53214371010 | DUST SEAL, STEERING HEAD | 1 |
2 | 53214MM9003 | DUST SEAL, STEERING HEAD(ARAI) | 1 |
3 | 53219MJPG50 | STEM SUB ASSY., STEERING | 1 |
4 | 53229MN1650 | THREAD, STEERING HEAD TOP | 1 |
5 | 90109MR7000 | BOLT, FLANGE, 8X45 | 4 |
6 | 91015KT8005 | BEARING, HEAD PIPE UPPER(KOYO) | 1 |
7 | 91016KT8005 | BEARING, HEAD PIPE UNDER(KOYO) | 1 |
