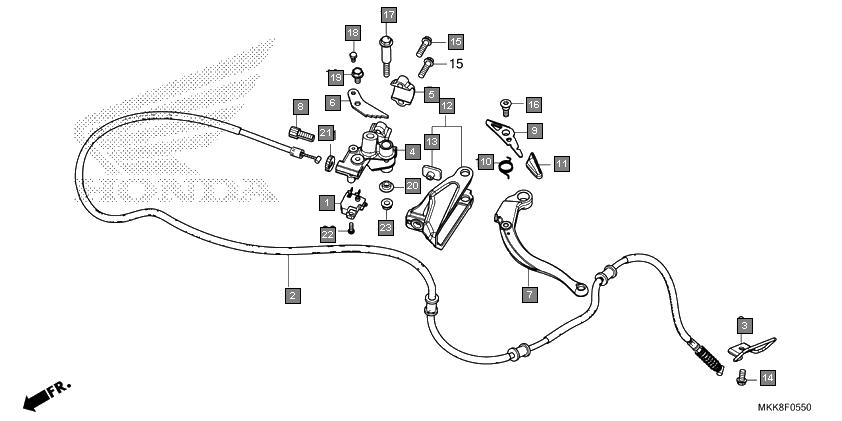

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 35340MGSD31 | SWITCH ASSY., FR. STOP | 1 |
2 | 43450MJPG81 | CABLE COMP., PARKING BRAKE | 1 |
3 | 43455MJPG80 | GUIDE, PARKING CABLE | 1 |
4 | 53172MJPG80 | BRACKET, PARKING BRAKE LEVER | 1 |
5 | 53174KA3730 | HOLDER, L. LEVER BRACKET | 1 |
6 | 53175MJPG80 | STAY, PARKING BRAKE STOPPER | 1 |
7 | 53178MJPG80 | LEVER, PARKING BRAKE | 1 |
8 | 53192MJPG80 | BOLT, PARKING BRAKE CABLE ADJUST | 1 |
9 | 53193MJPG80 | LEVER, PARKING BRAKE LOCK | 1 |
10 | 53194MJPG80 | SPRING, PARKING BRAKE LEVER | 1 |
11 | 53195MJPG80 | CAP, PARKING BRAKE LEVER | 1 |
12 | 53196MJPG60 | HOLDER COMP., L. KNUCKLE | 1 |
13 | 61304HB3003 | NUT, SPECIAL, 6MM | 1 |
14 | 90021GHB620 | BOLT, FLANGE, 6X12 | 1 |
15 | 90021GHB670 | BOLT, FLANGE, 6X22 | 2 |
16 | 90115MJPG80 | BOLT, PARKING BRAKE LEVER PIVOT | 1 |
17 | 90117MJPG50 | BOLT, L. HANDLE LEVER | 1 |
18 | 90122MJPG80 | BOLT, HEX., 4X8 | 1 |
19 | 90126MCHA00 | BOLT, FLANGE, 6X12 | 1 |
20 | 90127KF0770 | COLLAR, 6X4 | 1 |
21 | 90321MCJ000 | NUT, FIXING | 1 |
22 | 93500040120H | SCREW, PAN, 4X12 | 1 |
23 | 9405006000 | NUT, FLANGE, 6MM | 1 |
