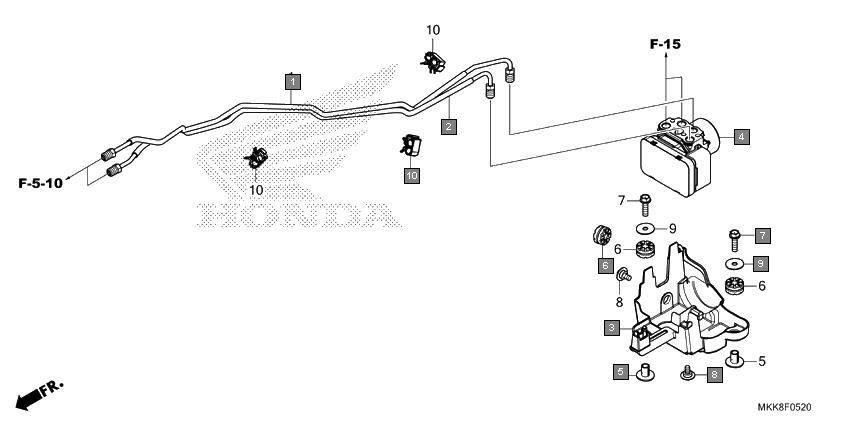

Motorcycles Africa Twin CRF1000DJ Frame Abs modulator
Ref.No. Part No. Description Oty
1 45126MKKD00 PIPE COMP. B, FR. BRAKE 1
2 45127MKKD00 PIPE COMP. C, FR. BRAKE 1
3 50345MKKD00 STAY, ABS MODULATOR 1
4 57110MKKD01 MODULATOR ASSY.(NISSIN) 1
5 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
6 77208KW7900 RUBBER B, SEAT MOUNTING 3
7 90030GHB670 BOLT, FLANGE, 6X22 2
8 90111KZZ900 BOLT, FLANGE, 6MM 2
9 90403KA3830 WASHER, RADIATOR MOUNTING 2
10 90661MEW921 CLAMP, BRAKE PIPE(7.0X2) 3
