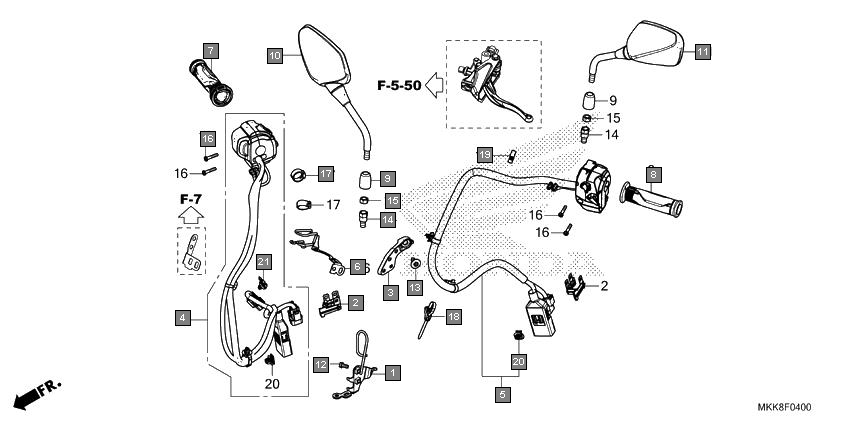

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17925MJPG50 | GUIDE, THROTTLE CABLE | 1 |
| 2 | 32121MKKD00 | HOLDER, COUPLER | 2 |
| 3 | 32151MKKD00 | STAY, CLIP | 1 |
| 4 | 35135MKKD51 | SWITCH UNIT, ENGINE STOP & D-N MODE & GRIP APS | 1 |
| 5 | 35200MKKD51 | SWITCH ASSY., WINKER & HAND SHIFT | 1 |
| 6 | 53111MKKD00 | CLAMPER, CABLE | 1 |
| 7 | 53140MKKD01 | GRIP ASSY., THROTTLE | 1 |
| 8 | 53166MGE000 | GRIP, L. HANDLE | 1 |
| 9 | 88130MFGD00 | COVER, LOCK NUT | 2 |
| 10 | 88210MJPG80 | MIRROR COMP., R. BACK | 1 |
| 11 | 88220MGSD30 | MIRROR COMP., L. BACK | 1 |
| 12 | 90021GHB620 | BOLT, FLANGE, 6X12 | 1 |
| 13 | 90114MGED00 | BOLT, SPECIAL, 6X15 | 1 |
| 14 | 90130MGSD31 | BOLT, ADAPTER, 10MM | 2 |
| 15 | 90310MGSD31 | NUT, HEX., 10MM (LEFT HAND THREAD) | 2 |
| 16 | 90508MGED00 | SCREW-WASHER, 5X25 | 4 |
| 17 | 90683KJ2003 | CLIP, WIRE HARNESS | 2 |
| 18 | 90690GHB611 | CLIP, HARNESS BAND, 25MM | 1 |
| 19 | 90690MEF800 | CLAMP, HARNESS | 1 |
| 20 | 91533SDA003 | CLIP, COUPLER(BEIGE) | 2 |
| 21 | 91565SEL003 | CLIP, COUPLER(BLACK) | 1 |
