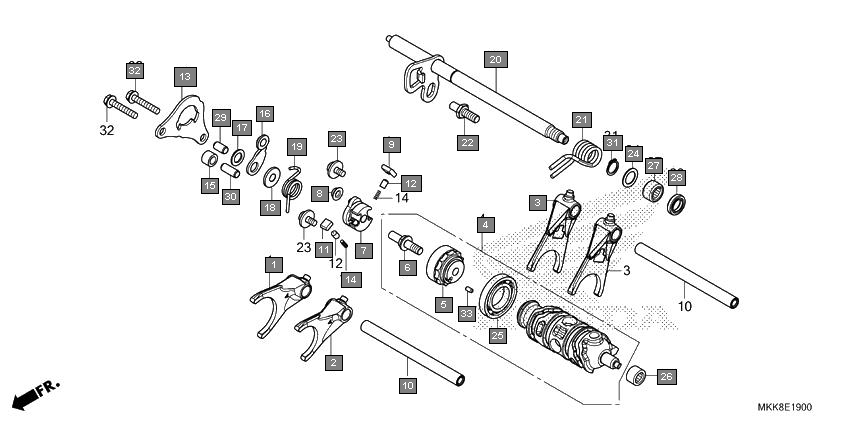

Motorcycles Africa Twin CRF1000DJ Engine Gearshift drum
Ref.No. Part No. Description Oty
1 24211MJPG80 FORK, R. GEARSHIFT 1
2 24212MJPG80 FORK, L. GEARSHIFT 1
3 24213HL4000 FORK, CENTER GEARSHIFT 2
4 24310MJPG80 DRUM COMP., GEARSHIFT 1
5 24312MJPG80 CENTER, SHIFT DRUM 1
6 24315HL4000 PIN, SHIFTER 1
7 24321KT8030 SHIFTER, DRUM 1
8 24322MM4000 COLLAR, SHIFTER 1
9 24324KA3711 PAWL A, RATCHET 1
10 24325HL4000 SHAFT, GEARSHIFT FORK 2
11 24325KA3711 PAWL B, RATCHET 1
12 24326KBH901 PLUNGER, PAWL 2
13 24328MJPG80 PLATE, CHANGE GUIDE 1
14 24329KA3740 SPRING, PAWL PLUNGER 2
15 24329MGSD20 COLLAR, GUIDE PLATE DISTANCE 1
16 24430HL4000 STOPPER COMP., GEARSHIFT DRUM 1
17 24433MJPG80 WASHER, GEARSHIFT DRUM STOPPER 1
18 24434MJPG80 COLLAR, SHIFT DRUM STOPPER 1
19 24435MJPG80 SPRING, GEARSHIFT DRUM STOPPER 1
20 24610MJPG80 SPINDLE COMP., GEARSHIFT 1
21 24651MGSD20 SPRING, GEARSHIFT RETURN 1
22 24652HA0000 PIN, GEARSHIFT RETURN SPRING 1
23 90021MM5000 BOLT-WASHER, 6X12 2
24 90451155000 WASHER, 14MM 1
25 91007MGSD31 BEARING, RADIAL BALL, 25X47X8 1
26 91024MGSD21 BEARING, NEEDLE, 12X18X12 1
27 91028MGSD21 BEARING, NEEDLE, 14X20X12 1
28 91203KK3830 OIL SEAL, 14X22X5 1
29 9430108140 DOWEL PIN, 8X14 1
30 9430108200 DOWEL PIN, 8X20 1
31 9451014000 CIRCLIP, EXTERNAL, 14MM 1
32 957010603500 BOLT, FLANGE, 6X35 2
33 9622040080 ROLLER, 4X8 1
