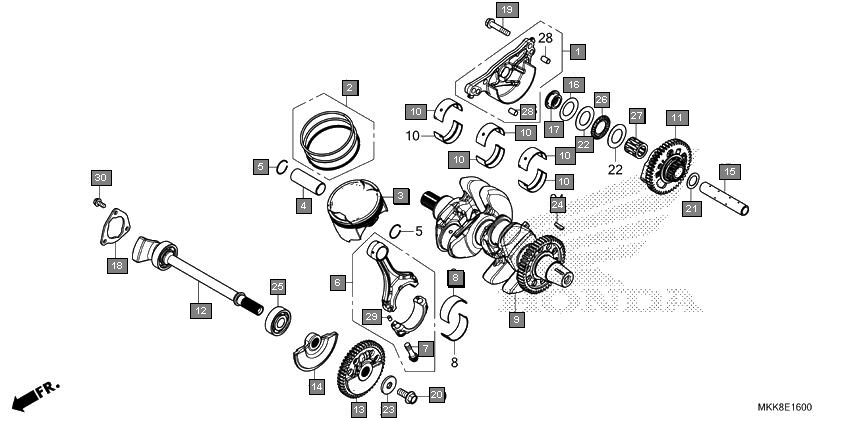

Motorcycles Africa Twin CRF1000DJ Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 11230MJPG50 HOLDER COMP., RR. BALANCER 1
2 13011MJP305 RING SET, PISTON(STD.) 2
3 13021MJP305 RING SET, PISTON(0.25) 2
4 13101MJPG50 PISTON 2
5 13102MJP305 PISTON(0.25) 2
6 13111MJPG50 PIN, PISTON 2
7 13112MC7000 CLIP, PISTON PIN, 22MM 4
8 13210MJPG50 ROD ASSY., CONNECTING 2
9 13213MJPG51 BOLT, CONNECTING ROD 4
10 13215MJPG51 BEARING B, CONNECTING ROD 4
11 13216MJPG51 BEARING C, CONNECTING ROD 4
12 13217MJPG51 BEARING D, CONNECTING ROD 4
13 13218MJPG51 BEARING E, CONNECTING ROD 4
14 13214MJPG51 BEARING A, CONNECTING ROD 4
15 13300MJPG80 CRANKSHAFT COMP. 1
16 13316MJPG51 BEARING E, CRANKSHAFT(YELLOW) 6
17 13314MJPG51 BEARING C, CRANKSHAFT(BROWN) 6
18 13315MJPG51 BEARING D, CRANKSHAFT(GREEN) 6
19 13313MJPG51 BEARING B, CRANKSHAFT(BLACK) 6
20 13312MJPG51 BEARING A, CRANKSHAFT(BLUE) 6
21 13400MJPG50 GEAR ASSY., RR. BALANCER 1
22 13420MKKD00 SHAFT COMP., FR. BALANCER 1
23 13430MKKD00 GEAR ASSY., FR. BALANCER(48T) 1
24 13433MJPDA0 WEIGHT, L. FR. BALANCER 1
25 13445MJPG50 SHAFT, RR. BALANCER 1
26 13446MJPG50 SPRING, RR. BALANCER THRUST 1
27 13447MJPG50 COLLAR, RR. BALANCER 1
28 13481MJPG50 PLATE, BALANCER BEARING 1
29 90003MCS000 BOLT, FLANGE, 8X40 3
30 90013MJPG50 BOLT, SPECIAL, 10X25 1
31 90402MJPG50 WASHER, 18X27.5X1.0 1
32 90404MJPG50 WASHER, 25X42X1.0 2
33 90405MFAD00 WASHER, 10.5X31.8 1
34 90701KAS900 KEY, SPECIAL WOODRUFF, 25X18 1
35 91002MJPG53 BEARING, RADIAL BALL, 17X47X14 1
36 91005MJPG51 BEARING, THRUST NEEDLE, 1
37 91016MJPG51 BEARING C, NEEDLE, 18X27X26.8 1
38 91017MJPG51 BEARING D, NEEDLE, 18X27X26.8 1
39 91015MJPG51 BEARING B, NEEDLE, 18X27X26.8 1
40 9430208140 PIN B, DOWEL, 8X14 2
41 9430304065 PIN C, DOWEL, 4X6.5 4
42 957010601400 BOLT, FLANGE, 6X14 3
