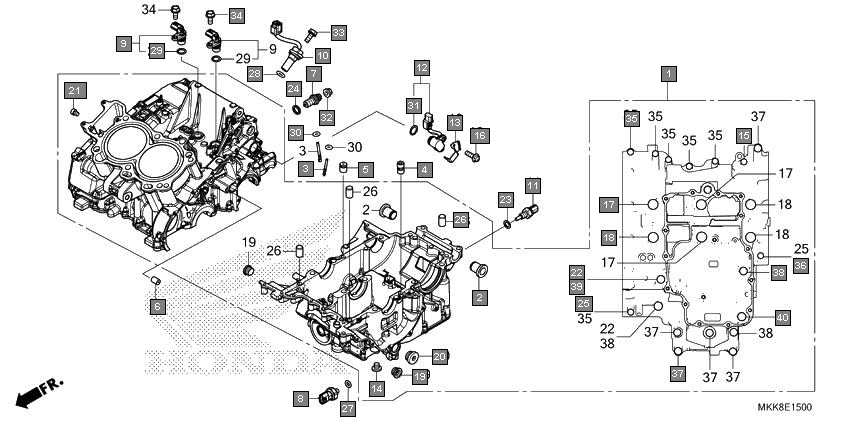

Motorcycles Africa Twin CRF1000DJ Engine Crankcase
Ref.No. Part No. Description Oty
1 11000MKKER0 CRANKCASE SET 1
2 11104MKKER0 COLLAR, ENGINE HANGER 2
3 11140MJPG50 JET COMP., OIL 2
4 11206MJPG50 ORIFICE 1
5 11207MJPG50 ORIFICE, 1.3MM 1
6 15516MGSD30 ORIFICE, 0.8MM 1
7 35600MK4860 SWITCH ASSY., NEUTRAL 1
8 37260MGE641 SENSOR, OIL PRESSURE 1
9 37700MJED01 SENSOR ASSY., SPEED(TDK-EPC) 2
10 37710MJPG81 SENSOR ASSY., SPEED 1
11 37750KPH701 SENSOR ASSY., THERMOSTAT OIL (PANASONIC) 1
12 38800MJPG81 SENSOR ASSY., ANGLE(350DEGREE) 1
13 38805MJPG80 COVER, ANGLE SENSOR 1
14 90005MJPG80 BOLT, SOCKET, 10MM 1
15 90007MJPG50 BOLT, FLANGE, 6X40 1
16 90011MGED00 BOLT, KNOCK, 6MM 1
17 90015MJPG50 BOLT, FLANGE, 10X110 3
18 90016MJPG50 BOLT, FLANGE, 10X145 3
19 90046MKKD00 BOLT, SEALING, 18MM 2
20 90047MJPG80 BOLT, SEALING, 22MM 1
21 90119SD9000 BOLT, SEALING, 8MM 1
22 90442028000 WASHER, SEALING, 8MM 2
23 90443MB0000 WASHER, SEALING, 10MM 1
24 90443MJ6000 WASHER, NEUTRAL 1
25 90488425000 WASHER, SEALING, 6MM 2
26 90701MV9670 DOWEL PIN, 10X16 3
27 91301MEH003 O-RING, 13X1.5 1
28 91302MAL601 O-RING, 18.1X3.6 1
29 91303KF0003 O-RING, 14.8X2.4(ARAI) 2
30 91305MCJ751 O-RING, 3.2X1.1 2
31 91310MGED01 O-RING, 16.5X2.5 1
32 9405004000 NUT, FLANGE, 4MM 1
33 957010601400 BOLT, FLANGE, 6X14 2
34 957010601600 BOLT, FLANGE, 6X16 2
35 957010603500 BOLT, FLANGE, 6X35 6
36 957010606000 BOLT, FLANGE, 6X60 1
37 957010804000 BOLT, FLANGE, 8X40 5
38 957010805500 BOLT, FLANGE, 8X55 3
39 957010809500 BOLT, FLANGE, 8X95 1
40 957011007500 BOLT, FLANGE, 10X75 1
