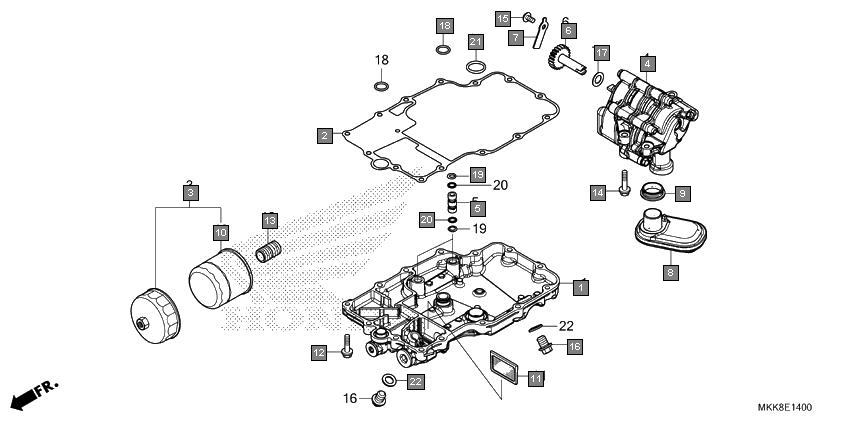

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11210MKKD50 | PAN COMP., OIL | 1 |
| 2 | 11395MJPG51 | GASKET, OIL PAN | 1 |
| 3 | 15010MCEH51 | FILTER SET, OIL | 1 |
| 4 | 15100MJPG81 | PUMP ASSY., OIL | 1 |
| 5 | 15104MGSD20 | PIPE, OIL PASS | 2 |
| 6 | 15130MJPG50 | GEAR COMP., OIL PUMP DRIVEN | 1 |
| 7 | 15136MJPG50 | PLATE, OIL PUMP DRIVEN GEAR | 1 |
| 8 | 15150MJPG50 | STRAINER COMP., OIL | 1 |
| 9 | 15154MAT000 | PACKING, OIL STRAINER | 1 |
| 10 | 15410MFJD01 | CARTRIDGE, OIL FILTER | 1 |
| 11 | 15421MJPG50 | SCREEN, OIL FILTER | 1 |
| 12 | 90006GHB680 | BOLT, FLANGE, 6X28(NSHF) | 14 |
| 13 | 90019MB0000 | BOSS, OIL FILTER | 1 |
| 14 | 90022MJPG50 | BOLT, SPECIAL, 6X32 | 3 |
| 15 | 90103MEN710 | BOLT, SPECIAL, 6MM | 1 |
| 16 | 90131883000 | BOLT, DRAIN PLUG, 12X15 | 2 |
| 17 | 90406MJPG50 | WASHER, 12X21X1.0 | 1 |
| 18 | 91303KF0003 | O-RING, 14.8X2.4(ARAI) | 2 |
| 19 | 91311RFH003 | O-RING, 7.7X1.9 | 4 |
| 20 | 91315MGSD20 | RING, BACK UP, 8X11 | 4 |
| 21 | 91352MGE003 | O-RING, 21.5X2.9 | 1 |
| 22 | 9410912000 | WASHER, DRAIN PLUG, 12MM | 2 |
