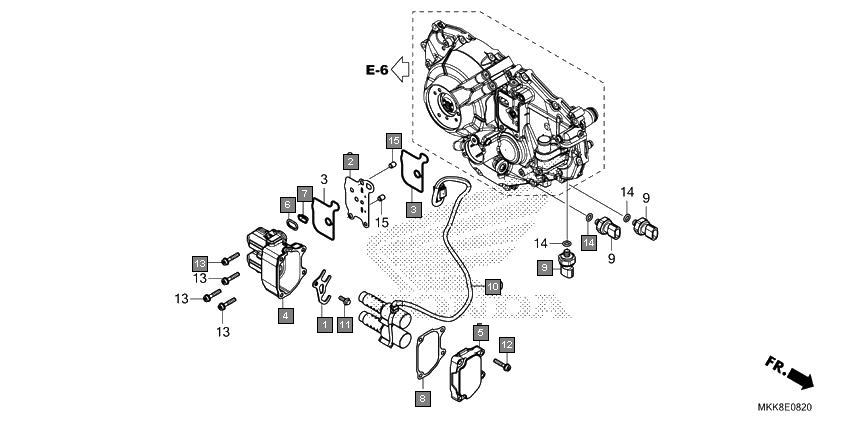

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 11338MJPG80 | PLATE, SOLENOID STOPPER | 1 |
2 | 11362MJPG80 | PLATE, SEPARATOR | 1 |
3 | 11364MJPG80 | GASKET, SOLENOID BODY | 2 |
4 | 11365MJPG80 | BODY, LINEAR SOLENOID | 1 |
5 | 11366MJPG80 | COVER, LINEAR SOLENOID | 1 |
6 | 11371MGSD20 | PACKING, BASE | 1 |
7 | 11372MGSD20 | FILTER COMP., SPOOL VALVE | 1 |
8 | 11398MJPG81 | GASKET, SOLENOID COVER | 1 |
9 | 28660RFH013 | SENSOR ASSY., OIL PRESSURE | 3 |
10 | 38610MJPG81 | SOLENOID ASSY., LINEAR | 1 |
11 | 90004GHB630 | BOLT, FLANGE, 6X16(NSHF) | 1 |
12 | 90026GHB690 | BOLT, FLANGE, 6X28 | 4 |
13 | 90026GHB700 | BOLT, FLANGE, 6X30 | 4 |
14 | 91301MEH003 | O-RING, 13X1.5 | 3 |
15 | 9430108100 | DOWEL PIN, 8X10 | 2 |
