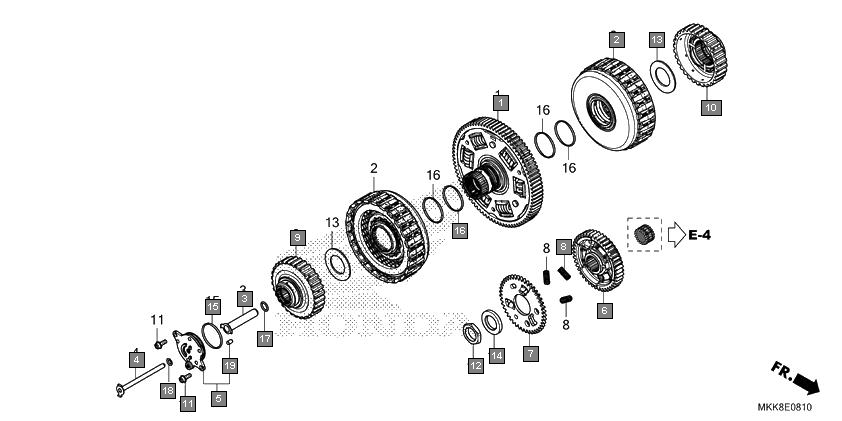

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 22100HL4003 | GEAR COMP., PRIMARY DRIVEN | 1 |
| 2 | 22500MJPG81 | CLUTCH ASSY. | 2 |
| 3 | 22711MJPG80 | PIPE COMP. A, FEED | 1 |
| 4 | 22712MJPG80 | PIPE COMP. B, FEED | 1 |
| 5 | 22720MJPG80 | GUIDE COMP., FEED PIPE | 1 |
| 6 | 23103MJPG80 | GEAR, PRIMARY DRIVE(43T) | 1 |
| 7 | 23104HL4000 | SUB GEAR, PRIMARY(43T) | 1 |
| 8 | 23115MW4000 | SPRING, PRIMARY DAMPER | 3 |
| 9 | 23405MJPG80 | GUIDE, FIRST CLUTCH GEAR(30T) | 1 |
| 10 | 23406HL4000 | GUIDE, SECOND CLUTCH GEAR(30T) | 1 |
| 11 | 90089KAS900 | BOLT, FLANGE SOCKET, 5X14 | 2 |
| 12 | 90201HL4000 | NUT, LOCK, 22MM | 1 |
| 13 | 90403HL4000 | WASHER, 29.5X50X2 | 2 |
| 14 | 90404HL4000 | WASHER, 22X37X5 | 1 |
| 15 | 91302PA9003 | O-RING, 39.8X2.2(ARAI) | 1 |
| 16 | 91302RGC003 | O-RING, 35X2.2 | 4 |
| 17 | 91308PY4003 | O-RING, 10.7X1.9 | 1 |
| 18 | 91315PC9004 | O-RING, 6X1.5(N0K) | 1 |
| 19 | 9430205080 | PIN B, DOWEL, 5X8 | 1 |
