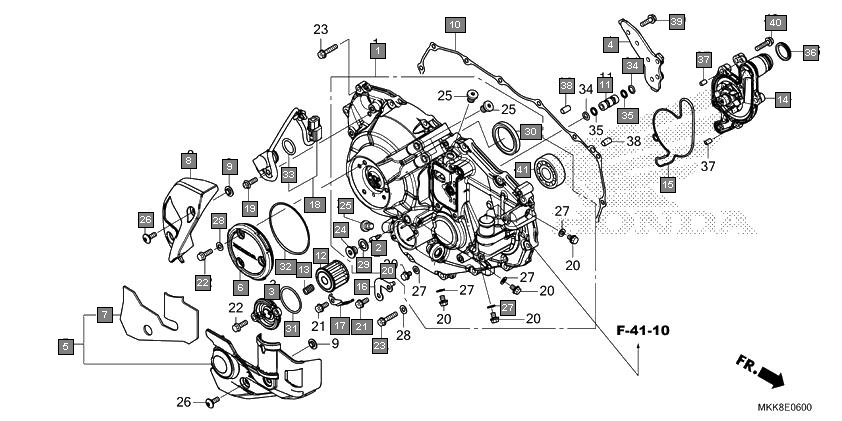

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11330MKKD50 | COVER COMP., R. CRANKCASE | 1 |
| 2 | 11335MJPG80 | ORIFICE | 1 |
| 3 | 11337MJPG80 | COVER, OIL FILTER | 1 |
| 4 | 11361MJPG80 | COVER, INNER | 1 |
| 5 | 11370MKKD50 | COVER COMP., OIL PRESSURE SENSOR | 1 |
| 6 | 11375MJPG80 | CAP, R. COVER | 1 |
| 7 | 11379MKKD50 | MAT, R. FR. COVER | 1 |
| 8 | 11381MJPG80 | COVER, R. RR. ENGINE | 1 |
| 9 | 11385MJFA00 | COLLAR | 4 |
| 10 | 11394MJPG51 | GASKET, R. CRANKCASE COVER | 1 |
| 11 | 15104MGSD20 | PIPE, OIL PASS | 1 |
| 12 | 15412MGSD21 | ELEMENT, OIL FILTER | 1 |
| 13 | 15414MEB670 | SPRING, OIL FILTER | 1 |
| 14 | 19200MJPG50 | PUMP COMP., WATER | 1 |
| 15 | 19226MJPG50 | GASKET, WATER PUMP BODY | 1 |
| 16 | 32157MJPG80 | STAY, HARNESS CLIP | 1 |
| 17 | 32158MJPG80 | STAY, HARNESS CLIP | 1 |
| 18 | 38810MJPG81 | SENSOR ASSY., ANGLE(40DEGREE) | 1 |
| 19 | 90011MGED00 | BOLT, KNOCK, 6MM | 1 |
| 20 | 90026GHB600 | BOLT, FLANGE, 6X8 | 5 |
| 21 | 90026GHB630 | BOLT, FLANGE, 6X14 | 2 |
| 22 | 90026GHB650 | BOLT, FLANGE, 6X18 | 5 |
| 23 | 90026GHB690 | BOLT, FLANGE, 6X28 | 16 |
| 24 | 90031MJPG80 | BOLT, SEALING, 12X8 | 1 |
| 25 | 90042MJPG80 | BOLT, SPECIAL, 10MM | 4 |
| 26 | 90085MGC920 | BOLT, SPECIAL, 6X17 | 4 |
| 27 | 90404HW1670 | WASHER, SEALING, 6MM | 5 |
| 28 | 90488425000 | WASHER, SEALING, 6MM | 4 |
| 29 | 90545KF0000 | WASHER, 12MM | 1 |
| 30 | 91004MJPG81 | BEARING, RADIAL BALL, 40X52X7 | 1 |
| 31 | 91302PA9003 | O-RING, 39.8X2.2(ARAI) | 1 |
| 32 | 91307MGED01 | O-RING, 81X2.2 | 1 |
| 33 | 91310MGED01 | O-RING, 16.5X2.5 | 1 |
| 34 | 91311RFH003 | O-RING, 7.7X1.9 | 2 |
| 35 | 91315MGSD20 | RING, BACK UP, 8X11 | 2 |
| 36 | 91315MJPG51 | SEAL, WATER PIPE | 1 |
| 37 | 9430106100 | DOWEL PIN, 6X10 | 2 |
| 38 | 9430108140 | DOWEL PIN, 8X14 | 2 |
| 39 | 957010602000 | BOLT, FLANGE, 6X20 | 6 |
| 40 | 957010602500 | BOLT, FLANGE, 6X25 | 4 |
| 41 | 961006304000 | BEARING, RADIAL BALL, 6304 | 1 |
