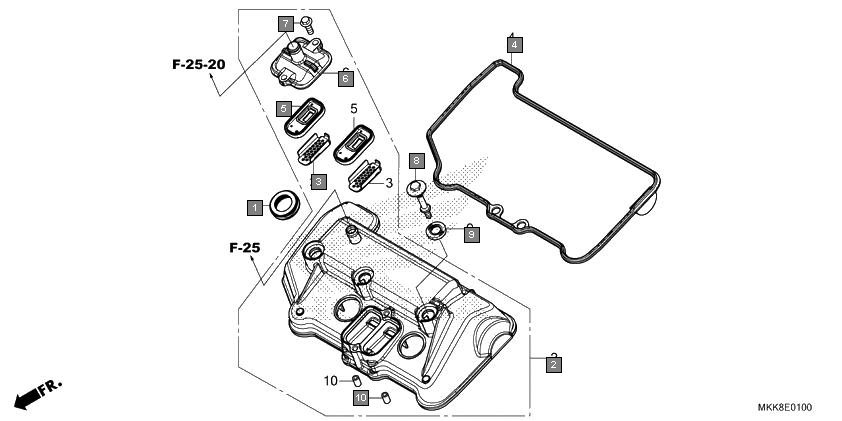

Motorcycles Africa Twin CRF1000DJ Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 12229HL4000 SEAL, PLUG TUBE 2
2 12300MKKD00 COVER ASSY., CYLINDER HEAD 1
3 12341MAT750 PLATE, PORT(AI) 2
4 12391HL4000 GASKET, HEAD COVER 1
5 18601KEA741 VALVE COMP., REED(ARAI) 2
6 18612MKKD00 COVER, REED VALVE 1
7 90004GHB640 BOLT, FLANGE, 6X18(NSHF) 2
8 90017MAL600 BOLT, HEAD COVER 3
9 90543MV9670 RUBBER, MOUNTING 3
10 9430110160 DOWEL PIN, 10X16 2
