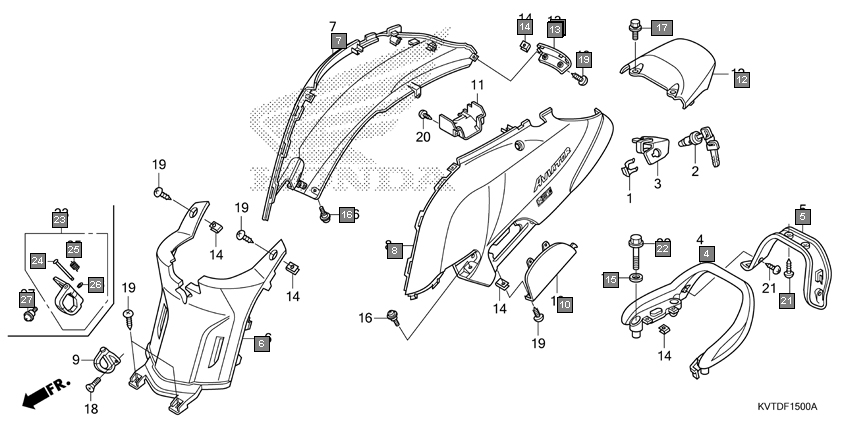

Scooters Aviator SCV110GFK Frame Body cover
Ref.No. Part No. Description Oty
1 77300KVTJ00ZD GRIP, RR. *NHB60M* MAT SELENE SILVER METALLIC 1
2 77300KVTJ00ZC GRIP, RR. *NHB63P* PEARL AMAZING WHITE 1
3 77300KVTJ00ZA GRIP, RR. *R382P* PEARL SPARTAN RED 1
4 77300KVTJ00ZE GRIP, RR. *NHB05P* PEARL IGNEOUS BLACK 1
5 77301KVT900 COVER, RR. GRIP 1
6 80151KVTJ00ZA COVER, CENTER 1
7 83100KVTG00ZK COVER SET, R. BODY(WL) *NHB60M* MAT SELENE SILVER METALLIC 1
8 83100KVTG00ZL COVER SET, R. BODY(WL) *NHB05P* PEARL IGNEOUS BLACK 1
9 83100KVTG00ZH COVER SET, R. BODY(WL) *R382P* PEARL SPARTAN RED 1
10 83100KVTG00ZJ COVER SET, R. BODY(WL) *NHB63P* PEARL AMAZING WHITE 1
11 83200KVTJ00ZC COVER SET, L. BODY(WL) *NHB60M* MAT SELENE SILVER METALLIC 1
12 83200KVTJ00ZB COVER SET, L. BODY(WL) *NHB63P* PEARL AMAZING WHITE 1
13 83200KVTJ00ZD COVER SET, L. BODY(WL) *NHB05P* PEARL IGNEOUS BLACK 1
14 83200KVTJ00ZA COVER SET, L. BODY(WL) *R382P* PEARL SPARTAN RED 1
15 83520KVT900ZB COVER, MAINTENANCE AIR CLEANER *NHB05P* PEARL IGNEOUS BLACK 1
16 83520KVT900ZN COVER, MAINTENANCE AIR CLEANER 1
17 83520KVT900ZL COVER, MAINTENANCE AIR CLEANER *NHB63P* PEARL AMAZING WHITE 1
18 83520KVT900ZP COVER, MAINTENANCE AIR CLEANER *R382P* PEARL SPARTAN RED 1
19 83700KVTJ00ZC COVER SET, RR. CENTER(WL) *TYPE2* 1
20 83700KVTJ00ZA COVER SET, RR. CENTER(WL) *TYPE4* 1
21 83700KVTJ00ZD COVER SET, RR. CENTER(WL) *TYPE1* 1
22 83700KVTJ00ZB COVER SET, RR. CENTER(WL) *TYPE3* 1
23 83751KVT900ZL COVER, RR. CENTER LOWER *NHB63P* PEARL AMAZING WHITE 1
24 83751KVT900ZN COVER, RR. CENTER LOWER *NHB60M* MAT SELENE SILVER METALLIC 1
25 83751KVT900ZB COVER, RR. CENTER LOWER *NHB05P* PEARL IGNEOUS BLACK 1
26 83751KVT900ZP COVER, RR. CENTER LOWER *R382P* PEARL SPARTAN RED 1
27 90344KRP900 NUT, CLIP, 5MM 11
28 90505KY4900 WASHER, PLAIN, 8MM 4
29 91509GE2760 SCREW, PAN, 5X11.5 4
30 934040601207 BOLT-WASHER, 6X12 2
31 9390325380 SCREW, TAPPING, 5X16 7
32 9390334380 SCREW, TAPPING, 4X12 4
33 957010804000 BOLT, FLANGE, 8X40 4
34 81132K24G00 HOOK, LUGGAGE 1
35 81136KTF670 PIN, HOOK 1
36 81137KTF670 SPRING, HOOK 1
37 81138KTF670 CIRCLIP 1
38 90102GB2720 SCREW, PAN, 5X16 2
