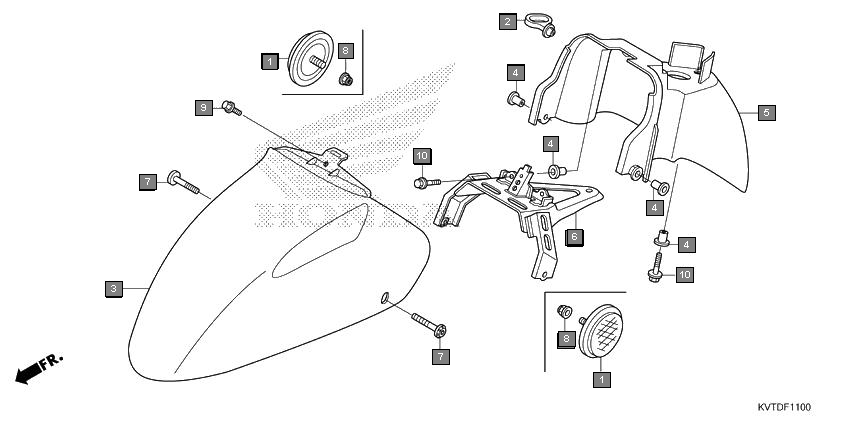

Scooters Aviator SCV110GFK Frame Front fender
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 45451471000 GROMMET, WIRE 1
3 61100KVTD00ZZ FENDER A, FR. 1
4 61103KRY900 COLLAR A, FR. FENDER 5
5 61120KVTG10ZA FENDER B, FR. *NH1* BLACK 1
6 61300KVTD20 STAY COMP., FR. FENDER 1
7 90113KVT901 BOLT, SPECIAL HEX., 6X20 2
8 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
9 957010601208 BOLT, FLANGE, 6X12 1
10 957010602008 BOLT, FLANGE, 6X20 3
