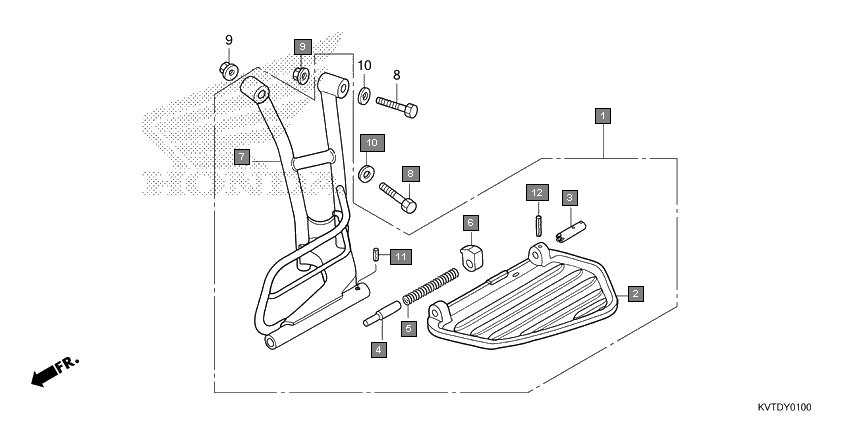

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 83520KRP900 | STEP ASSY., SARI | 1 |
2 | 83521KPL900 | PLATE, SARI STEP | 1 |
3 | 83522KPL900 | PIN A, SARI STEP | 1 |
4 | 83523KPL900 | PIN B, SARI STEP | 1 |
5 | 83524KPL900 | SPRING, STEP RETURN | 1 |
6 | 83526KPL900 | STOPPER, STEP RUBBER | 1 |
7 | 83530KRP900 | STEP COMP., SARI | 1 |
8 | 92201080450A | BOLT, HEX., 8X45 | 2 |
9 | 9405008000 | NUT, FLANGE, 8MM | 2 |
10 | 9410308800 | WASHER, PLAIN, 8MM | 2 |
11 | 9430530142 | PIN, SPRING, 3X14 | 1 |
12 | 9430530282 | PIN, SPRING, 3X28 | 1 |
