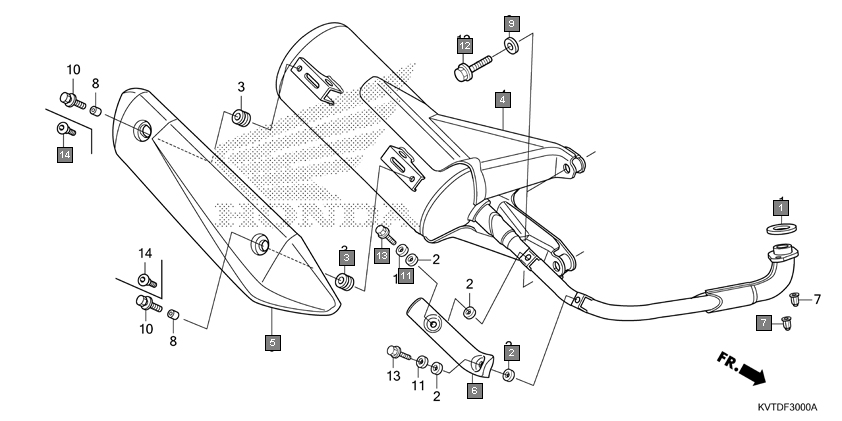

Scooters Aviator SCV110GK Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18292GY1610 GASKET, EX. PIPE 1
2 18292KTP900 PACKING, PROTECTOR 4
3 18345KWPH00 RUBBER, PROTECTOR MOUNTING 2
4 18300KVTJ00 MUFFLER COMP., EX. 1
5 18318KZKE00 PROTECTOR, MUFFLER 1
6 18319KVTG00 PROTECTOR, EX. PIPE 1
7 90304MJ0920 NUT, CAP, 7MM 2
8 90510KVTG00 WASHER, PLAIN, 10MM 2
9 9410106700 WASHER, PLAIN, 6MM 2
10 958011004007 BOLT, FLANGE, 10X40 2
11 960010601007 BOLT, FLANGE, 6X10 2
12 90113KYJ710 SCREW, PAN, 6X12 2
