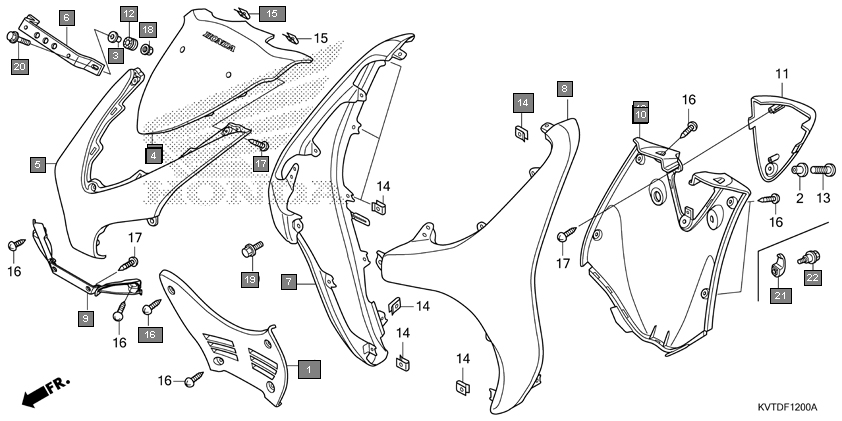

Scooters Aviator SCV110GK Frame Front cover
Ref.No. Part No. Description Oty
1 50623KVTG00ZA COVER, FR. UNDER *NH1* BLACK 1
2 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
3 64200KVTJ00ZC COVER SET, FR. UPPER(WL) *TYPE2* 1
4 64200KVTJ00ZA COVER SET, FR. UPPER(WL) *TYPE4* 1
5 64200KVTJ00ZB COVER SET, FR. UPPER(WL) *TYPE3* 1
6 64200KVTJ00ZD COVER SET, FR. UPPER(WL) *TYPE1* 1
7 64302KVT960 COVER, FR. LOWER *NHB07M* MAT EARL SILVER METALLIC 1
8 64303KVTF00 STAY, FR. NUMBER PLATE 1
9 64304KVTD00ZZ COVER COMP., R. FR. 1
10 64305KVTD00ZZ COVER COMP., L. FR. 1
11 64312KVTG00ZA LOUVER, FR. COVER *NH1* BLACK 1
12 81131KVTJ00ZD COVER, INNER *NHB05P* PEARL IGNEOUS BLACK 1
13 81131KVTJ00ZA COVER, INNER *R382P* PEARL SPARTAN RED 1
14 81131KVTJ00ZC COVER, INNER *NHB60M* MAT SELENE SILVER METALLIC 1
15 81131KVTJ00ZB COVER, INNER *NHB63P* PEARL AMAZING WHITE 1
16 84703425000 RUBBER, TAILLIGHT MOUNTING 2
17 90344KRB900 NUT, CLIP, 5MM 14
18 90344KRP900 NUT, CLIP, 5MM 2
19 9390325380 SCREW, TAPPING, 5X16 12
20 9390334320 SCREW, TAPPING, 4X12 5
21 9405006080 NUT, FLANGE, 6MM 2
22 957010601208 BOLT, FLANGE, 6X12 4
23 957010602507 BOLT, FLANGE, 6X25 2
24 81132KWPH00ZA HOOK, LUGGAGE 1
25 90107KVB900 BOLT, SPECIAL, 6MM 1
