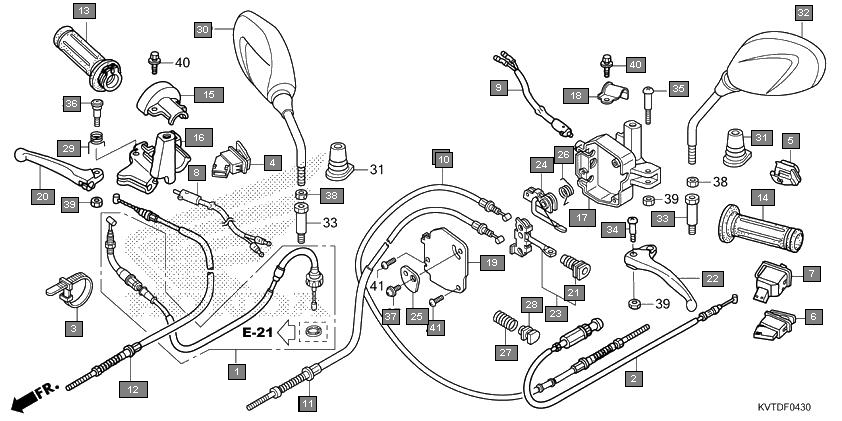

Scooters Aviator SCV110GK Frame Handle lever/switch/cable(scv110g)
Ref.No. Part No. Description Oty
1 06179KVTJ00 CABLE SET, THROTTLE 1
2 17950KVTJ02 CABLE COMP., CHOKE(SEL) 1
3 32161KSP920 BAND B1, WIRE 1
4 35160KWP901 SWITCH UNIT, STARTER 1
5 35170KPL901 SWITCH UNIT, DIMMER(MINDA) 1
6 35170KPL842 SWITCH UNIT, DIMMER(JAY USHIN) 1
7 35180KWP901 SWITCH UNIT, HORN 1
8 35200KWP901 SWITCH UNIT, WINKER(MINDA) 1
9 35340KPL841 SWITCH ASSY., FR. STOP 1
10 35340KWPF01 SWITCH ASSY., FR. STOP 1
11 43450KVTJ01 CABLE COMP., RR. BRAKE(HI-LEX) 1
12 43450KVTJ02 CABLE COMP., RR. BRAKE(SEL) 1
13 45440KVTJ01 CABLE COMP., L. FR. BRAKE (HI-LEX) 1
14 45440KVTJ02 CABLE COMP., L. FR. BRAKE(SEL) 1
15 45450KVTJ01 CABLE COMP., R. FR. BRAKE 1
16 53146KRB901 GRIP COMP., THROTTLE 1
17 53166KPL901 GRIP, L. HANDLE 1
18 53167KPL900 HOUSING, UPPER THROTTLE 1
19 53168KWP900 HOUSING, UNDER THROTTLE 1
20 53172KWP910 BRACKET, L. BRAKE LEVER 1
21 53173K24G00 BAND, HANDLE BRACKET 1
22 53173KWP910 COVER, L. BRAKE LEVER BRACKET 1
23 53175KWPD00 LEVER, R. STEERING HANDLE 1
24 53176GBL870 BOOT, BRAKE LEVER ROD 1
25 53178KWPD00 LEVER, L. STEERING HANDLE 1
26 53180KWP910 EQUALIZER COMP. 1
27 53185KWP910 ARM COMP., RR. BRAKE LOCK 1
28 53186GBL870 COVER, RR. BRAKE LOCK LEVER 1
29 53186KWP910 SPRING, BRAKE LOCK ARM RETURN 1
30 53188K24900 SPRING, DELAY 1
31 53189K24900 STOPPER, EQUALIZER 1
32 53199KZN910 SPRING, BRAKE LEVER RETURN 1
33 88110KWPH01 MIRROR ASSY., R. BACK 1
34 88113KRP901 CAP, LOCK NUT 2
35 88120KWPH01 MIRROR ASSY., L. BACK 1
36 90103K24H00 BOLT, ADAPTER, 8MM 2
37 90115KPL900 SCREW, HANDLE LEVER PIVOT 1
38 90115KRP980 SCREW, HANDLE LEVER PIVOT 1
39 90115KZN910 SCREW, HANDLE LEVER PIVOT 1
40 90118KWP910 SCREW, PAN, 5X13 1
41 90201KV3680 NUT, HEX., 8MM(L.H.) 2
42 90304KPL900 NUT, HEX., 5MM 3
43 934010602000 BOLT-WASHER, 6X20 2
44 93500050121H SCREW, PAN, 5X12 2
