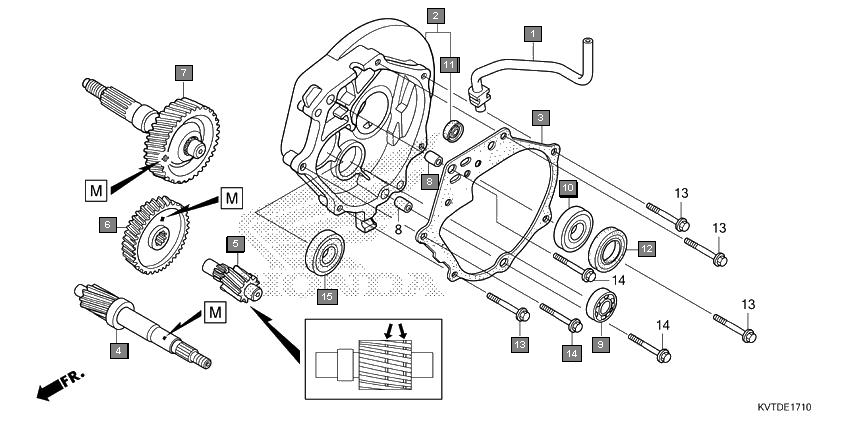

Scooters Aviator SCV110GK Engine Transmission(musashi)
Ref.No. Part No. Description Oty
1 11220KWPH00 TUBE, MISSION BREATHER 1
2 21200KWPH00 CASE COMP., MISSION 1
3 21395KWP901 GASKET, TRANSMISSION CASE 1
4 23411KVTF00 DRIVESHAFT(19T) 1
5 23411KWPH00 DRIVESHAFT(19T) 1
6 23421KWPH00 COUNTERSHAFT(13T) 1
7 23421KVTG00 COUNTERSHAFT(13T) 1
8 23422KWPF00 GEAR, COUNTER(51T) 1
9 23430KWPH00 GEAR COMP., FINAL(49T) 1
10 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
11 91006KWPG32 BEARING, RADIAL BALL, 6201 (FAG) 1
12 91006KWPG31 BEARING, RADIAL BALL, 6201 (NBC) 1
13 91008KWPD02 BEARING, RADIAL BALL, 6004UU(FAG) 1
14 91008KWPD01 BEARING, RADIAL BALL, 6004UU(NSK) 1
15 91008KWPD03 BEARING, RADIAL BALL, 6004UU(NEI LTD) 1
16 91204KWPD01 OIL SEAL, 14X20X3.2(FENNER) 1
17 91203KPL901 OIL SEAL, 14X20X3.2 1
18 91225KWPD01 OIL SEAL, 27X42X7 1
19 957010603000 BOLT, FLANGE, 6X30 4
20 957010604000 BOLT, FLANGE, 6X40 3
21 961006301000 BEARING, RADIAL BALL, 6301 1
