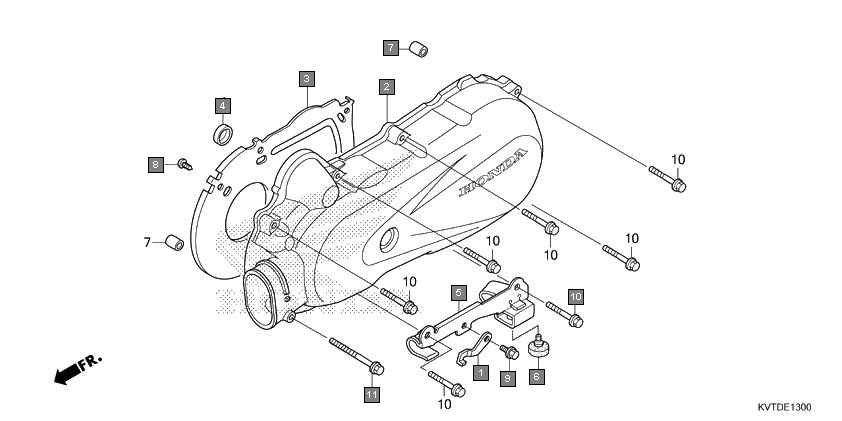

Scooters Aviator SCV110GK Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11233KZK900 CLAMP, BRAKE CABLE 1
2 11341KVTJ00 COVER, L. SIDE 1
3 11342K86D00 PLATE, L. COVER 1
4 11344GW3980 RUBBER, STARTER PINION HOLDER 1
5 11230KZK900 CLAMPER COMP., RR. BRAKE CABLE 1
6 50501KPL900 STOPPER, RUBBER 1
7 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
8 9390334120 SCREW, TAPPING, 4X8 5
9 960010601000 BOLT, FLANGE, 6X10 1
10 960010603500 BOLT, FLANGE, 6X35 7
11 960010607500 BOLT, FLANGE, 6X75 1
