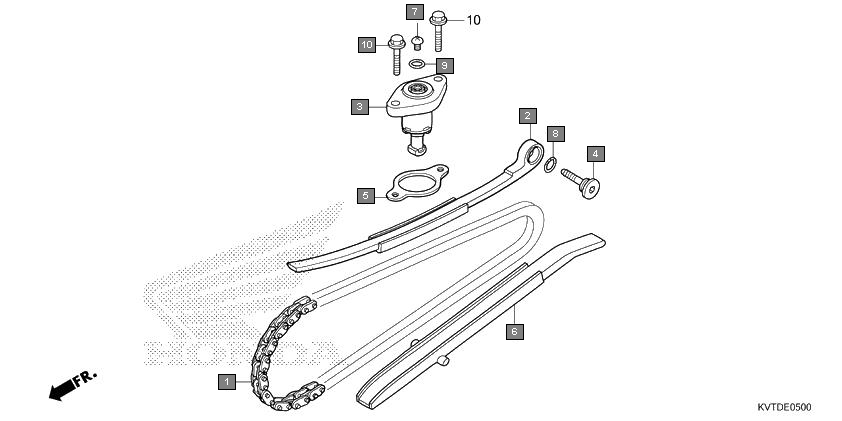

Scooters Aviator SCV110GK Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14401KWP901 CHAIN, CAM(90L) 1
2 14510KWP900 TENSIONER, CAM CHAIN 1
3 14520K24G01 LIFTER ASSY., TENSIONER 1
4 14531GCC000 PIVOT, CAM CHAIN TENSIONER 1
5 14560KCW880 GASKET, TENSIONER LIFTER 1
6 14611KWP900 GUIDE, CAM CHAIN 1
7 90005KY7000 SCREW, PAN, 6X6 1
8 91301HM5630 O-RING, 15.2X1.5 1
9 91306105690 O-RING, 1.5X9.5 1
10 957010602200 BOLT, FLANGE, 6X22 2
