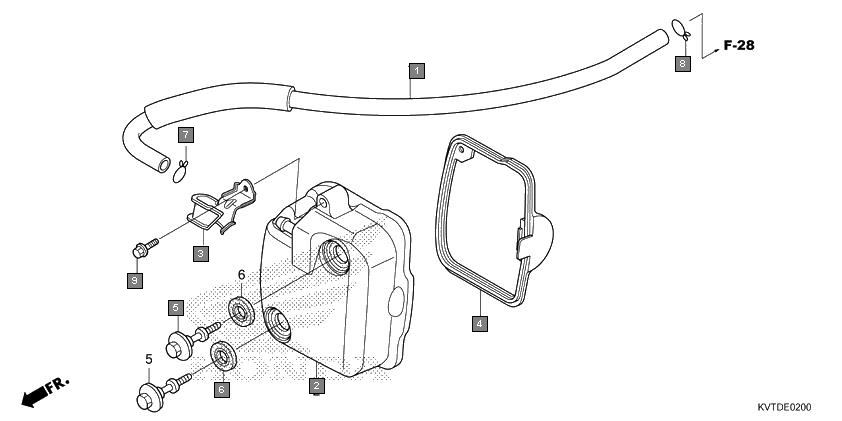

Scooters Aviator SCV110GK Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 11211KWP900 TUBE, BREATHER 1
2 12310KWPH00 COVER COMP., HEAD 1
3 12315KZN900 CLAMPER, THROTTLE CABLE 1
4 12391KWP900 GASKET, CYLINDER HEAD COVER 1
5 90017KPL900 BOLT, HEAD COVER 2
6 90543MV9670 RUBBER, MOUNTING 2
7 90601KWPF00 CLIP, TUBE(B12) 1
8 90653KWPF00 CLIP, TUBE(B12.5) 1
9 960010601400 BOLT, FLANGE, 6X14 1
