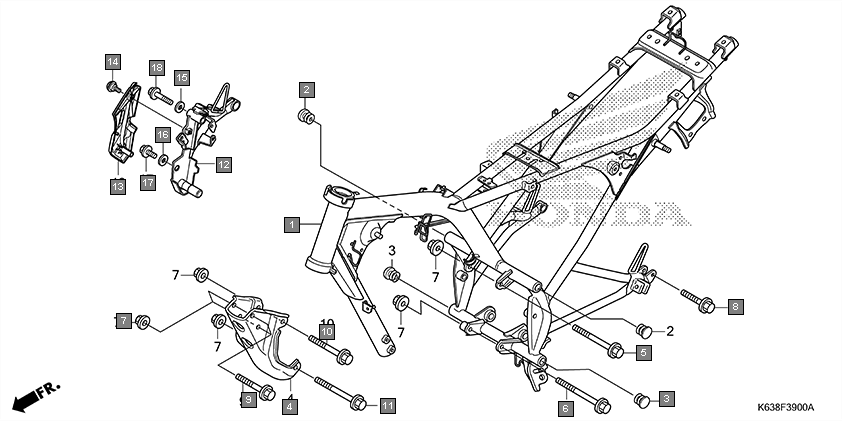

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 50100K63900 | BODY COMP., FRAME | 1 |
| 2 | 50100K63D30 | BODY COMP., FRAME | 1 |
| 3 | 50315H06000 | CAP, PIPE END | 2 |
| 4 | 50315KYY900 | CAP, PIPE END | 2 |
| 5 | 50351K14910 | PLATE, FR. ENGINE HANGER | 1 |
| 6 | 90019399010 | BOLT, FLANGE, 10X110 | 1 |
| 7 | 90132K14900 | BOLT, FLANGE, 10X135 | 1 |
| 8 | 9405010000 | NUT, FLANGE, 10MM | 6 |
| 9 | 957010803500 | BOLT, FLANGE, 8X35 | 1 |
| 10 | 958011006500 | BOLT, FLANGE, 10X65 | 2 |
| 11 | 958011008500 | BOLT, FLANGE, 10X85 | 1 |
| 12 | 958011009500 | BOLT, FLANGE, 10X95 | 1 |
| 13 | 50155K55970 | BRACKET COMP., R. PILLION STEP | 1 |
| 14 | 83561K55970 | COVER(CBS) | 1 |
| 15 | 90101GE0000 | SCREW, HINGE PATCH | 1 |
| 16 | 90505KY4900 | WASHER, PLAIN, 8MM | 1 |
| 17 | 9410108800 | WASHER, PLAIN, 8MM | 1 |
| 18 | 957010802200 | BOLT, FLANGE, 8X22 | 1 |
| 19 | 957010806000 | BOLT, FLANGE, 8X60 | 1 |
