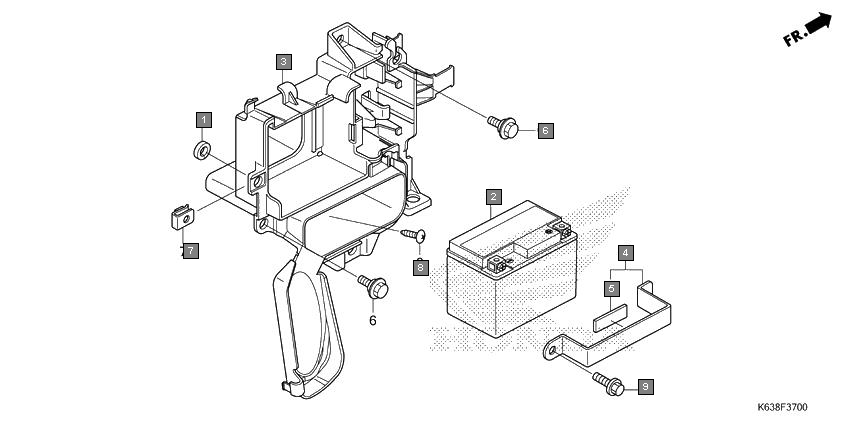

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17223KVX600 | COLLAR, AIR CLEANER | 1 |
2 | 31500KVT941 | BATTERY ASSY.(ETZ4)(EXIDE) | 1 |
3 | 31500KVT801 | BATTERY ASSY.(ETZ4-BS)(EXIDE) | 1 |
4 | 50325K63D30 | BOX, BATTERY | 1 |
5 | 50326KZAW00 | BAND, BATTERY | 1 |
6 | 77211KVE900 | CUSHION, RR. COWL | 1 |
7 | 90111162000 | BOLT, FLANGE, 6MM | 2 |
8 | 90311MT3000 | NUT, CLIP, 6MM | 1 |
9 | 9390325380 | SCREW, TAPPING, 5X16 | 1 |
10 | 957010601608 | BOLT, FLANGE, 6X16 | 1 |
