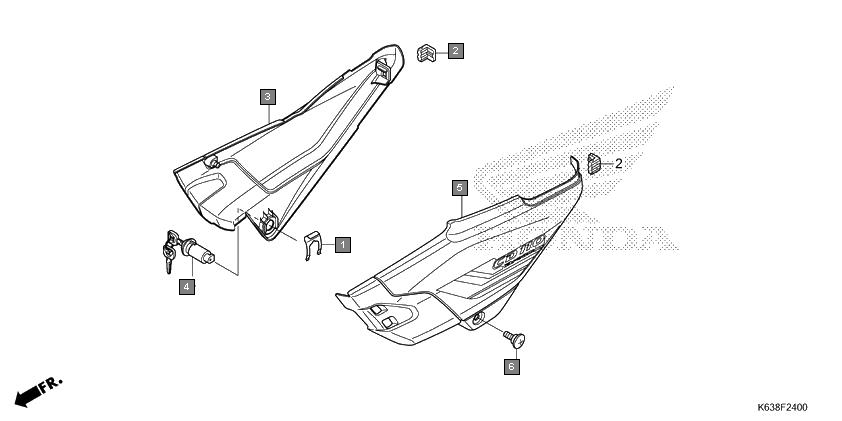

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 75581GN8920 | SPRING, LOCK KEY SETTING | 1 |
2 | 83502KCC900 | GROMMET, SIDE COVER | 2 |
3 | 83520K63D80ZA | COVER SET, R. SIDE(WL) *TYPE5* BlacknGold | 1 |
4 | 83520K63D80ZD | COVER SET, R. SIDE(WL) *TYPE2* BlacknBlue | 1 |
5 | 83520K63D80ZE | COVER SET, R. SIDE(WL) *TYPE1* BlacknRed | 1 |
6 | 83520K63D30ZA | COVER SET, R. SIDE(WL) *TYPE4* | 1 |
7 | 83520K63D80ZB | COVER SET, R. SIDE(WL) *TYPE4* BlacknGreen | 1 |
8 | 83520K63D30ZC | COVER SET, R. SIDE(WL) *TYPE2* | 1 |
9 | 83520K63D80ZC | COVER SET, R. SIDE(WL) *TYPE3* BlacknGray | 1 |
10 | 83520K63D30ZD | COVER SET, R. SIDE(WL) *TYPE1* | 1 |
11 | 83520K63D30ZB | COVER SET, R. SIDE(WL) *TYPE3* | 1 |
12 | 83550K14901 | LOCK, SIDE COVER(JAY USHIN) | 1 |
13 | 83620K63D80ZC | COVER SET, L. SIDE(WL) *TYPE3* BlacknGray | 1 |
14 | 83620K63D80ZE | COVER SET, L. SIDE(WL) *TYPE1* BlacknRed | 1 |
15 | 83620K63D80ZA | COVER SET, L. SIDE(WL) *TYPE5* BlacknGold | 1 |
16 | 83620K63D30ZA | COVER SET, L. SIDE(WL) *TYPE4* | 1 |
17 | 83620K63D80ZB | COVER SET, L. SIDE(WL) *TYPE4* BlacknGreen | 1 |
18 | 83620K63D80ZD | COVER SET, L. SIDE(WL) *TYPE2* BlacknBlue | 1 |
19 | 83620K63D30ZC | COVER SET, L. SIDE(WL) *TYPE2* | 1 |
20 | 83620K63D30ZB | COVER SET, L. SIDE(WL) *TYPE3* | 1 |
21 | 83620K63D30ZD | COVER SET, L. SIDE(WL) *TYPE1* | 1 |
22 | 90104KYY900 | SCREW, SPECIAL, 6X17 | 1 |
