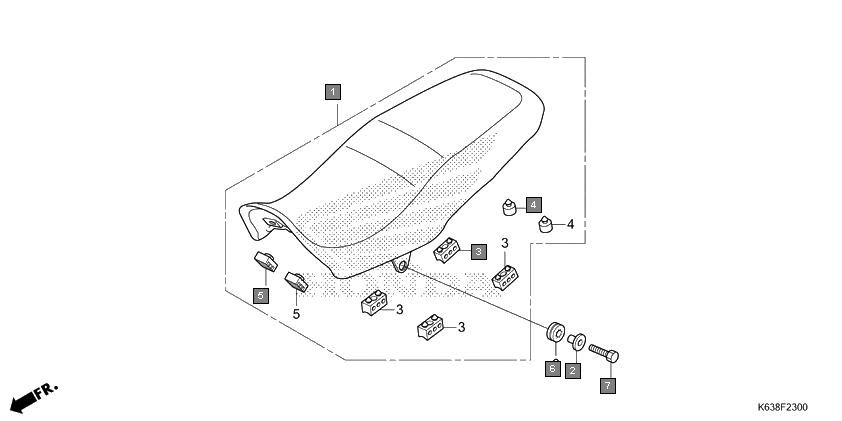

Motorcycles CD 110 Dream CB110C2MK Frame Seat
Ref.No. Part No. Description Oty
1 77200K63D31ZA SEAT ASSY., DOUBLE *TYPE1* 1
2 77201KYY900 COLLAR, SEAT MOUNTING 2
3 77204KYA600 RUBBER A, SEAT SETTING 4
4 77206KPPT00 RUBBER, SEAT CUSHION 2
5 77207KYA600 RUBBER B, SEAT SETTING 2
6 77218KYY900 RUBBER, SEAT STAY 2
7 92101080280A BOLT, HEX., 8X28 2
