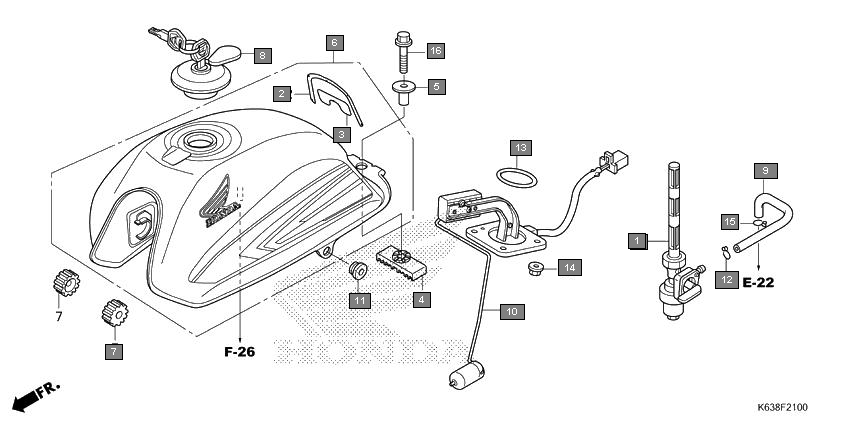

Motorcycles CD 110 Dream CB110C2MK Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950K63D32 COCK ASSY., FUEL(ADVIK) 1
2 16950K63D31 COCK ASSY., FUEL(UCAL) 1
3 17506K23900 FILM A, TANK PROTECTOR 1
4 17507K23900 FILM B, TANK PROTECTOR 1
5 17508KVX600 RUBBER, RR. FUEL TANK MOUNTING 1
6 17509K23900 COLLAR, FUEL TANK MOUNT 1
7 17520K63D70ZA TANK ASSY., FUEL(WL) *TYPE5* BlacknGold 1
8 17520K63D70ZB TANK ASSY., FUEL(WL) *TYPE4* BlacknGreen 1
9 17520K63D30ZA TANK ASSY., FUEL(WL) *TYPE4* 1
10 17520K63D70ZC TANK ASSY., FUEL(WL) *TYPE3* BlacknGray 1
11 17520K63D70ZD TANK ASSY., FUEL(WL) *TYPE2* BlacknBlue 1
12 17520K63D30ZB TANK ASSY., FUEL(WL) *TYPE3* 1
13 17520K63D30ZD TANK ASSY., FUEL(WL)*TYPE1* 1
14 17520K63D70ZE TANK ASSY., FUEL(WL) *TYPE1* BlacknRed 1
15 17520K63D30ZC TANK ASSY., FUEL(WL)*TYPE2* 1
16 17611KFN850 CUSHION, FR. FUEL TANK 2
17 17620KTED03 CAP COMP., FUEL FILLER (JAY USHIN) 1
18 17681K63D30 TUBE, FUEL 1
19 37800K63D31 FUEL UNIT 1
20 83551376000 GROMMET, SIDE COVER 2
21 90652KWPF00 CLIP, TUBE(B8) 1
22 91305443740 O-RING, 39.5X5 1
23 9405006000 NUT, FLANGE, 6MM 4
24 9500250000 CLIP, TUBE(C9) 1
25 957010803508 BOLT, FLANGE, 8X35 1
