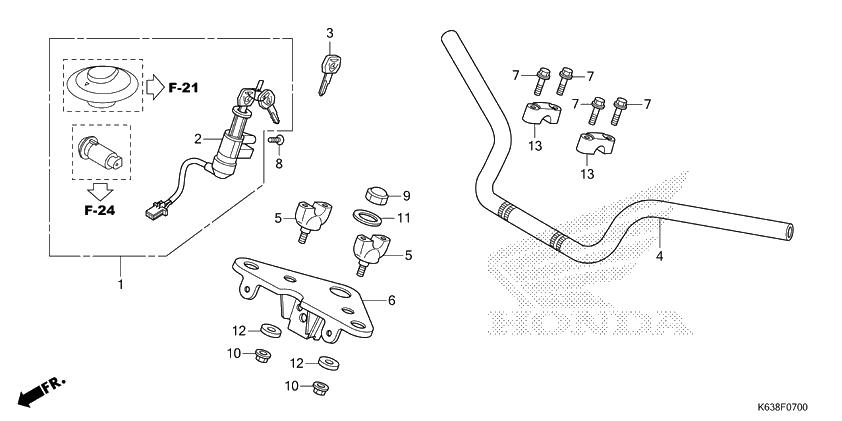

Motorcycles CD 110 Dream CB110C2MK Frame Handle pipe/top bridge
Ref.No. Part No. Description Oty
1 35010K63D30 KEY SET 1
2 35100K14901 SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) 1
3 35121KWS900 KEY, BLANK(JAY USHIN) 1
4 53100K14900ZB PIPE, STEERING HANDLE *NH105* MAT BLACK 1
5 53130KTE910 HOLDER, HANDLE UNDER 2
6 53230K23900ZA BRIDGE COMP., FORK TOP *NH105* MAT BLACK 1
7 90117383000 BOLT, FLANGE, 6X28 4
8 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
9 90304K63D30 NUT, STEERING STEM 1
10 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
11 90503KSP900 WASHER, STEERING STEM 1
12 90521427770 WASHER, 10.3MM 2
13 9501421101 HOLDER A1, HANDLE PIPE UPPER 2
